Fiat Ducato (III FL; 2014 – 2019) – fuse and relay box diagram

Posted on by admin

Fiat Ducato (III FL; 2014 – 2019) – fuse and relay box diagram

Year of production: 2014, 2015, 2016, 2017, 2018, 2019



This article covers the third-generation (3rd generation), produced from 2014 to present. It includes fuse box diagrams for the 2014, 2015, 2016, 2017, 2018 and 2019 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Passenger compartment

Fuse box diagram

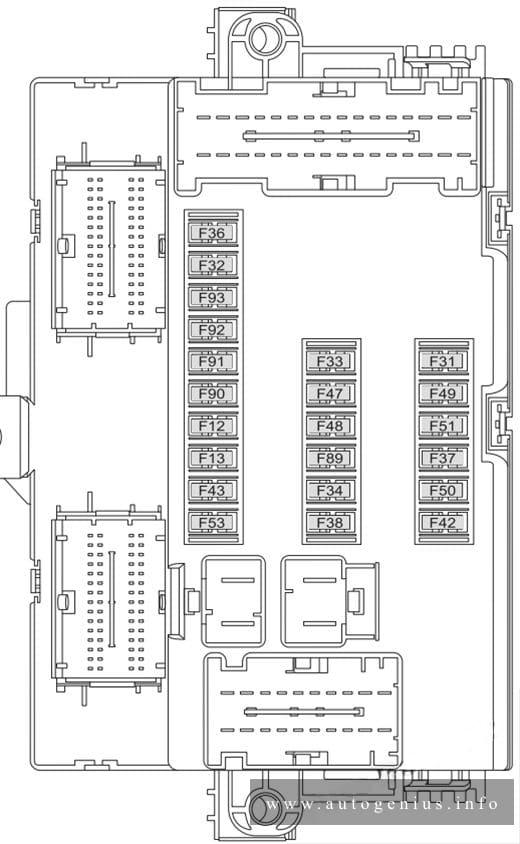

Fiat Ducato (III FL; 2014 - 2019) - fuse and relay box diagram - passenger compartment (dashboard)
Fiat Ducato (III FL; 2014 – 2019) – fuse and relay box diagram – passenger compartment (dashboard)



Assignment of the fuses in the passenger compartment (dashboard)

№ Ampere rating [A] Device protected
F12 7,5 Right dipped beam headlight
F13 7,5 Left dipped headlight
F31 5 Engine compartment control unit relay, dashboard control unit relay (+key)
F32 7,5 Lighting of roof lights in the passenger compartment (+battery)
F33 7,5 Battery monitoring sensor for Start&Stop versions (+battery)
F34 7,5 Minibus interior lights (emergency)
F35 7,5 Reversing lights, sevotronic control unit, Water in diesel fuel filter sensor, (+key)
F36 10 Radio, climate control, alarm, tachograph, battery disconnecting control unit, Webasto timer (+battery
F37 7,5 Brake light control (main), third brake light instrument panel (+key
F38 20 Door lock (+battery
F43 20 Windscreen wiper (+key)
F47 20 Driver’s side electric window
F48 20 Passenger side electric window
F49 5 Parking sensor control unit, radio, steering wheel controls, central control panel, left control panel, auxiliary panel, battery disconnecting control unit (+key
F51 5 Climate control, power steering control unit, reverse lights, diesel filter water sensor, flow meter, tachograph (+key)
F53 7,5 Instrument panel (+battery)
F89 — —
F90 7,5 Left main beam headlight
F91 7,5 Right main beam headlight
F92 7,5 Left fog light
F93 7,5 Right fog light



Passenger compartment (optional fuse box)

Fuse box location

Optional fuse box on the right central post (where provided)



Fuse box diagram

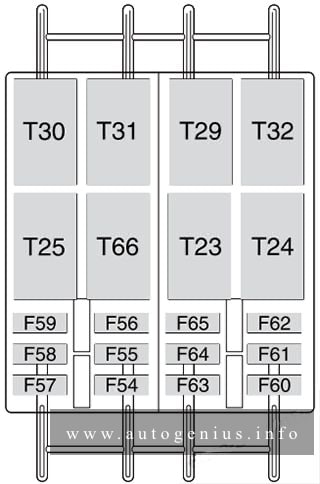

Fiat Ducato (III FL; 2014 - 2019) - fuse and relay box diagram - passenger compartment (optional)
Fiat Ducato (III FL; 2014 – 2019) – fuse and relay box diagram – passenger compartment (optional)



Assignment of the fuses in the passenger compartment (optional fuse box)

№ Ampere rating [A] Device protected
F54 — —
F55 15 Heated seats
F56 15 Rear passenger power socket
F57 10 Additional heater under the seat
F58 10 Left heated rear window
F59 7,5 Right heated rear window
F60 — —
F61 — —
F62 — —
F63 10 Additional passenger heater control
F64 — —
F65 30 Additional passenger heater fan



Engine compartment

Fuse box diagram

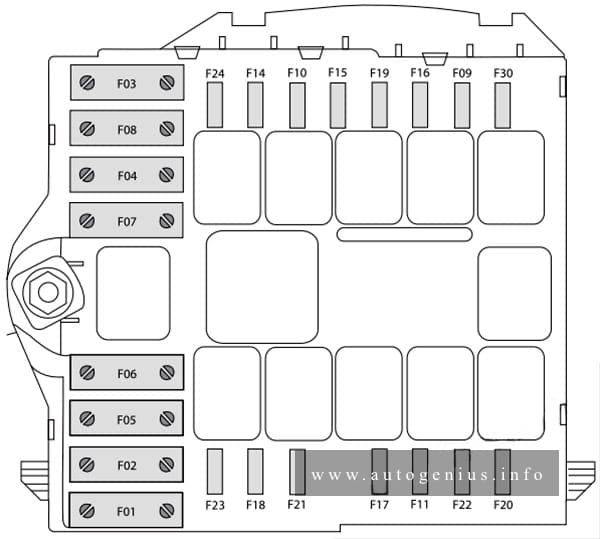

Fiat Ducato (III FL; 2014 - 2019) - fuse and relay box diagram - engine compartment
Fiat Ducato (III FL; 2014 – 2019) – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ Ampere rating [A] Device protected
F03 30 Ignition switch (+battery)
F04 40 Heated filter
F05 20/50 Vaporiser for Puma engine/Passenger compartment ventilation with Webasto, robotised gearbox pump (+battery)
F06 40/60 Engine cooling high speed fan (+battery)
F07 40/50/60 Engine cooling low speed fan (+battery)
F08 40 Passenger compartment fan (+key
F09 15 Rear power socket (+battery)
F10 15 Horn
F14 15 Power socket (+battery)
F15 15 Cigar lighter (+battery)
F18 7,5 Powertrain Control Module, robotised gearbox control unit (+battery)
F19 7,5 Air conditioning compressor
F20 30 Windscreen wiper
F24 7,5 Auxiliary control panel for mirror movement and folding (+key)
F30 15 Mirrors demisting

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram

Posted on by admin

Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram

Year of production: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017



The Volkswagen Amarok, a mid-size pickup truck, was produced from 2010 to 2020. In this article, you’ll find fuse box diagrams for the 2010 through 2017 models, along with information on the location of the fuse panels inside the vehicle and details about the function and layout of each fuse and relay.

Passenger compartment

Fuse box diagram (holder C)

Volkswagen Amarok (2010 - 2017) - fuse and relay box diagram - passenger compartment (holder C)
Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram – passenger compartment (holder C)



Assignment of the fuses in the passenger compartment (fuse holder C)

Fuse Current Flow Diagram designation Ampere rating [A] Function/component
1 Fuse 1 on fuse holder C -SC1- 10 ABS cintrol unik -J104-, TCS and ESP button -E256-, Driving program button -E598-
2 Fuse 2 on fuse holder C -SC2- 10 Steering column electronics control unit -J527-
3 Fuse 3 on fuse holder C -SC3- 10 Reversing switch -F41-
4 Fuse 4 on fuse holder C -SC4- 15 Onboard supply control unit -J519-
5 Fuse 5 on fuse holder C – SC5- 5 Air mass meter -G70-
6 Fuse 6 on fuse holder C -SC6- 5 Trailer detector control unit -J345-
7 Fuse 7 on fuse holder C -SC7- 5 Interface for external use
8 Fuse 8 on fuse holder C -SC8- 10 Electronic ignition lock -D9-
9 Fuse 9 on fuse holder C -SC9- 10 Airbagcontrol unit -J234-, Front passenger side airbag deactivated warning lamp -K145-
10 Fuse 10 on fuse holder C -SC10- 5 Engine control unit -J623-
11 Fuse 11 on fuse holder C -SC11- 15 Differentral lock control unit -J187-
12 Fuse 12 on fuse holder C – SC12- 10 Fuel pump 1 -V276-
13 Fuse 13 on fuse holder C -SC13 5 Exhaust flap valve -N220-, Exhaust gas recirculation cooler change-over calve -N345-
14 Fuse 14 on fuse holder C -SC14 15 Continued coolant circulation pump -V51-
15 Fuse 15 on fuse holder C -SC15- 5 Engine control unit -J623-
16 Fuse 16 on fuse holder C -SC16- 10 Rear fog light warning lamp -K13-, Rear left fog light bulb -L46-, Rear right fog light bulb -L47-
17 Fuse 17 on fuse holder C – SC17- 5 Right tail light bulb -M2-, Right side light bulb -M3-
18 Fuse 18 on fuse holder C -SC18- 5 Left side light bulb -M1-, left tail light bulb -M4-
19 Fuse 19 on fuse holder C -SC19 15 Onboard supply control unit -J519-
20 Fuse 20 on fuse holder C -SC20- 15 Onboard supply control unit -J519-
21 Fuse 21 on fuse holder C -SC21- 5 Onboard supply control unit -J519-
22 Fuse 22 on fuse holder C -SC22- — Vacant
23 Fuse 23 on fuse holder C -SC23- 15 Engine control unit -J623-
24 Fuse 24 on fuse holder C -SC24 10 Alarm horn -H12-
25 Fuse 25 on fuse holder C -SC25- 10 Heater element fon crancase breather -N79-
26 Fuse 26 on fuse holder C -SC26 5 Right day driving light bulb -L175-
27 Fuse 27 on fuse holder C -SC27- 5 Left day driving light bulb -L174-
28 Fuse 28 on fuse holder C -SC28- 15 Number plate left light -X4, Number plate right light -X5-
29 Fuse 29 on fuse holder C -SC29- 10 Left headlight range control motor -V48-
30 Fuse 30 on fuse holder C -SC30- 10 Left main beam bulb -L125-
31 Fuse 31 on fuse holder C -Sc31- — Vacant
32 Fuse 32 on fuse holder C -SC32- 10 Right main beam bulb -L126-
33 Fuse 33 on fuse holder C -SC33- 5 Mirror adjustment switch -E43-
34 Fuse 34 on fuse holder C -Sc34- 15 Vacant
35 Fuse 35 on fuse holder C -SC35- 15 Lambda probe 1 upstream of catalytic converter -GX10-
36 Fuse 36 on fuse holder C -Sc36- 5 Engine control unit -J623-
37 Fuse 37 on fuse holder C -SC37- — Vacant
38 Fuse 38 on fuse holder C -SC38- 15 12V socket -U5-
39 Fuse 39 on fuse holder C -SC39- 25 Trailer detector control unit -J345-
40 Fuse 40 on fuse holder C -SC40- 25 Trailer detector control unit -J345-
41 Fuse 41 on fuse holder C -SC41- 25 Trailer detector control unit -J345-
42 Fuse 42 on fuse holder C -SC42- 15 Diagnostic connection -U31-, steering column electronics control unit -J527-, Air conditioning system pressure switch -F129-, Air quality sensor -G238-, differential lock control unit -J187-, transfer box control unit -J646-, dash panel insert -K-, High level brake light bulb -M25-, Brake light switch -F-, Display unit -K40-
43 Fuse 41 on fuse holder C – Sc43- 25 Onboard supply control unit -J519-
44 Fuse 44 on fuse holder C -SC44- 30 Onboard supply control unit -J519-
45 Fuse 45 on fuse holder C -SC45- 15 Diagnostic connection -U31-, Dash panel insert -K-, Steering column electronics control unit -J527-, Air conditioning system control unit -J301-, Climatronic control unit -J255-, Heater/heat output switch -E16-
46 Fuse 46 on fuse holder C -SC46- 25 Transfer boc control unit -J646-
47 Fuse 47 on fuse holder C -SC47- 20 Onboard supply control unit
48 Fuse 48 on fuse holder C -SC48- 20 Driver door control unit -J386-
49 Fuse 49 on fuse holder C -SC49- 20 Front passanger door control unit -J387-
50 Fuse 50 on fuse holder C -SC50- 20 Rear left door control unit -J388-
51 Fuse 51 on fuse holder C -SC51- 20 Rear right door control unit -J389-
52 -Fuse 52 on fuse holder C -SC52- 15 Electric socket -U-
53 Fuse 53 on fuse holder C -SC53- 20 Left fog light bulb -L22-
54 Fuse 54 on fuse holder C -SC54- 15 Cigarette lighter -U1-
55 Fuse 55 on fuse holder C -SC55- 15 Right headlight range control motor -V49-
56 Fuse 56 on fuse holder C -SC56- — Vacant
57 Fuse 57 on fuse holder C -SC57- 30 Seat heating button, left -E653-, Seat heating button, right – E654-, Seat heating control unit -J882-
58 Fuse 58 on fuse holder C -SC58- — Vacant
59 Fuse 59 on fuse holder C -SC59- 20 12V socket -UX3-
60 Fuse 60 on fuse holder C -SC60- 5 Trailer detector unit -J345-, Diagnostic connection -U31-, Onboard supply control unit -J519-
61 Fuse 61 on fuse holder C -SC61- 5 Trailer detector control unit -J345-, Diagnostic connection -U31-, Onboard supply control unit -J519-
62 Fuse 62 on fuse holder C -SC62- 20 Auxiliary heater control unit -J364-, Circulation pump -V55-
63 Fuse 63 on fuse holder C -SC63- 10 Load area illumination bulb -M53-
64 Fuse 64 on fuse holder C -SC64- 30 Heater/heat output switch -E16-, Climatronic control unit -J255-, Air conditioning system control unit -J301-
65 Fuse 65 on fuse holder C -SC65- 15 Engine control unit -J623-
66 Fuse 66 on fuse holder C -SC66- 30 Onboard supply control unit -J519-
67 Fuse 67 on fuse holder C -SC67- 30 Radio -R-, Control unit with display for radio and navigation system -J503-
68 Fuse 68 on fuse holder C -SC68- — Vacant
69 Fuse 69 on fuse holder C -SC69- 15 Interface for external use
70 Fuse 70 on fuse holder C -SC70- 5 Interface for external use
71 Fuse 71 on fuse holder C -SC71- 25 Interface for external use
72 Fuse 72 on fuse holder C -SC72- 10 Interface for external use

Engine compartment

Fuse box diagram (holder A -SA-)

Volkswagen Amarok (2010 - 2017) - fuse and relay box diagram - engine compartment (holder A and holder B)
Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram – engine compartment (holder A and holder B)



Assignment of the fuses in the engine compartment (fuse holders A)

Fuse Current flow diagram designation Ampere rating [A] Function/component
1 Fuse 1 on fuse holder A -SA1- 175 Alternato -C-
2 Fuse 2 on fuse holder A -SA2- 175 Fuse 4 on fuse holder C -SC4-, Fuse 8 on fuse holder C -SC8-, Fuse 11 on fuse holder C -SC11-, Fuse 15 on fuse holder C -SC15-, Fuse holder C -SC19 – SC24-, Fuse holder C -SC43 – SC51-, Fuse holder SC62 – SC64-, Fuse holder C -SC66 – SC67-
3 Fuse 3 on fuse holder A -SA3- 40 Interface for external use
4 Fuse 4 on fuse holder A -SA4- 80/110 Radiator fan -V7-
5 Fuse 5 on fuse holder A -SA5- 50 Automatic glow period control unit J179-
6 Fuse 6 on fuse holder A -SA6- 80 Fuse holder C -SC39 – SC41-



Engine compartment

Fuse box diagram (holder B -SB-)

Volkswagen Amarok (2010 - 2017) - fuse and relay box diagram - engine compartment (holder A and holder B)
Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram – engine compartment (holder A and holder B)



Assignment of the fuses in the engine compartment (fuse holders B)

Fuse Current Flow Diagram designation Ampere rating [A] Function/component
1 Fuse 1 on fuse holder B -SB1- 30 ABS control unit J104-
2 Fuse 2 on fuse holder B -SB2- 30 Fuel pump relay -J17-, Fuel system pressurisation pump -G6-
3 Fuse 3 on fuse holder B -SB3- 10 ABS control unit -J104-
4 Fuse 4 on fuse holder B -SB4- 5 Onboard supply control unit -J519-
5 Fuse 5 on fuse holder B -SB5- — Vacant
6 Fuse 6 on fuse holder B -SB6- — Vacant

Relays

Relay box diagram

Volkswagen Amarok (2010 - 2017) - fuse and relay box diagram - relay box
Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram – relay box



Assignment of the relays in the relay box

Relay Description
1 Auxiliary coolant heater relay -J493-
2 Vacant
3 Vacant
4 Vacant
5 Vacant
6 Voltage supply relay 2 -J710- (53)
7 Terminal 15 voltage supply relay -J329- (100)
8 Coolant pump relay -J235-
9 Vacant
10 Vacant
11 Vacant
12 Voltage supply relay 1 -J701- (53)
13 Starter motor relay -J53- (53)
14 Fuel pump relay -J17- (404)
Terminal 30 voltage supply relay -J317- (404)
15 Current supply relay -J16- (100)
16 Terminal 58b relief relay -J374- (449)
20 Main relay -J271- (643)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Beetle (1954 – 1979) – fuse and relay box diagram

Posted on by admin

VW Beetle (1954 – 1979) – fuse and relay box diagram

Year of production: 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979



The classic compact car Volkswagen Beetle was produced from 1938 to 2003. In this article, you will find fuse box diagrams for the Volkswagen Beetle models from 1954 through 1979, get information about the location of the fuse panels inside the vehicle, and learn about the assignment of each fuse (fuse layout) and relay.

Fuse box diagram

Volkswagen Beetle (1954 - 1979) - fuse and relay box diagram
Volkswagen Beetle (1954 – 1979) – fuse and relay box diagram



Assignment of the fuses in the fuse box

Fuse/relay Description
1 Low beam
2 Open
3 Turn signal/emergency flasher
4 Open
5 Buzzer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Transporter (T5; 2003 – 2009) – fuse box diagram

Posted on by admin

Volkswagen Transporter  (T5; 2003 – 2009) – fuse box diagram

Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009

This article focuses on the pre-facelift fifth-generation Volkswagen Transporter (T5), manufactured between 2003 and 2009. It includes fuse box diagrams for Volkswagen Transporter T5 models from 2003 through 2009, details on the location of the fuse panels within the vehicle, and information about the function of each fuse (fuse layout).

Passenger Compartment Fuse Boxes

Fuse Box Location

Volkswagen Transporter (T5; 2003 - 2009) - fuse box location - passenger compartment
Volkswagen Transporter (T5; 2003 – 2009) – fuse box location – passenger compartment



Fuse Box Diagram (-SB-, -SC-)

Volkswagen Transporter (T5; 2003 - 2009) - fuse box diagram - passenger compartment (holder B and holder C)
Volkswagen Transporter (T5; 2003 – 2009) – fuse box diagram – passenger compartment (holder B and holder C)



Assignment of the fuses in the instrument panel (fuse holders C and B)

№ Amps Function/component
Fuse holder B
SB1 25A Fresh air blower isolation relay
SB1 30A 2003:
Rear blower Bitron regulation motor
Fresh air blower isolation relay
X-contact relay
2004-2009:
Rear blower Bitron regulation motor
SB2 5A Steering angle sender
SB3 10A Onboard power supply control unit
SB4 10A Headlight range control regulator
Left headlight range control motor
Right headlight range control motor
SB5 15A Left headlight twin filament bulb
Left headlight dipped beam bulb
Special vehicle fuse 3
SB6 15A Left headlight twin filament bulb
Left main beam bulb
Special vehicle fuse 6
SB7 15A Onboard power supply control unit (interior light)
SB8 5A 16-pin connector, diagnostic connector
SB9 10A/15A Brake light switch
SB10 5A/10A Intermittent wiper switch
Rear wiper switch
SB11 5A Number plate light
Switches and instruments illumination regulator (2003)
SB12 15A Cigarette lighter
SB13 5A 2003-2004: Brake light additional relay
2004-2009: Airbag control unit
SB14 30A 2003-2006:
Fresh air blower switch
Air conditioning system switch
Auxiliary coolant heater relay
Front blower Bitron regulation motor
2008-2009:
Headlight dipper/flasher switch
SB15 7,5A Air conditioning system switch
Fresh air/air recirculation flap switch (2004-2009)
Rear fresh air blower switch (2004-2009)
Climatronic control unit
Air conditioning system compressor regulating valve
SB16 5A Onboard power supply control unit
SB17 5A Rear fog light cut-out contact switch
Rear fog light warning lamp
Rear left fog light bulb
Trailer socket
SB18 5A Control unit in dash panel insert
SB19 5A Operating and display unit for camping equipment
Control unit in dash panel insert
Control unit with display for radio and navigation system
Onboard power supply control unit
Roof hydraulics control unit
Radio
Special vehicle fuse 1
SB20 5A Left side light bulb
Left tail light bulb
Left brake and tail light bulb
10-pin connector, purple
Trailer socket
SB21 5A Right tail light bulb
Right side light bulb
Right brake and tail light bulb
Trailer socket
SB22 7,5A/10A Control unit in dash panel insert
Front passenger side airbag deactivated warning lamp
16-pin connector, diagnostic connector
16-pin connector, diagnostic connector 2
SB23 25A/30A/40A Starter
SB23 5A Starter inhibitor relay, 10-pin connector, yellow
SB23 25A Trailer socket (2003)
SB24 5A Steering angle sender
SB25 5A Air conditioning system switch
Fresh air/air recirculation flap switch
Climatronic control unit
SB26 30A Lighting switch
SB27 15A Right headlight twin filament bulb
Right headlight dipped beam bulb
Special vehicle fuse 4
SB28 15A Main beam warning lamp
Right headlight twin filament bulb
Right main beam bulb
Special vehicle fuse 7
SB29 10A 2004-2009: Dual signal inverter relay
SB30 10A Rear window wiper motor
Rear left wing door window wiper motor
Rear right wing door window wiper motor
Left washer jet heater element
Right washer jet heater element
SB31 30A Onboard power supply control unit (signal horn)
SB32 25A Onboard power supply control unit (windscreen wiper motor)
SB33 15A Control unit with display for radio and navigation system
Traffic information control unit
Radio
SB34 25A 2003:
Speedometer sender
Air mass meter
Automatic gearbox relay
Engine control unit
2004-2009:
Automatic gearbox relay
Positive connection 1 (15), in engine harness
Fuses on fuse holder D (engine compartment): №3, 12, 14, 15, 16, 17, 19, 20, 24
SB35 5A Instruments illumination
SB36 25A Onboard power supply control unit (turn signal)
Fuse holder C
SC1 25A/15A 2003: 12V socket 2
2004-2009: Trailer socket
SC2 5A Interior monitor send and receive module (2003)
Interior monitor send and receive module 2
Anti-theft and tilt system control unit (2004-2009)
SC3 5A 2003-2007:
Right auxiliary blower
Left auxiliary blower
SC3 30A 2008-2009: Onboard power supply control unit (heated rear window
SC4 10A/15A 2003:
12V socket 3
2004-2006:
Four-wheel drive control unit
2007-2009:
Rear differential lock switch
Differential lock control unit
Four-wheel drive control unit
SC5 10A/15A 2003: Refrigerator box
2004-2009: 6-pin connector, grey
SC6 5A Oil level and oil temperature sender
SC7 10A 2003: Switch-over relay 1 for roof ventilator
2004-2009: Positive connection -6- (30), in main wiring harrness (roof ventilator)
SC7 15A 2005-2009: 12V socket 4
SC8 5A Parking aid control unit
SC9 5A Multifunction steering wheel control unit
SC10 30A Amplifier
SC11 15A 2004-2009: Rear lid control unit
SC11 20A Alarm horn (2004-2009)
Convenience system central control unit
Left sliding door control unit
Rear lid control unit
Right sliding door control unit
SC12 5A/10A 2003:
Auxiliary coolant heater relay
Brake light additional relay
2004-2009:
Brake light additional relay
SC13 5A Cruise control system switch
Operating unit in steering wheel
Airbag coil connector and return spring with slip ring
SC14 5A Mobile telephone operating electronics control unit
SC15 5A Gearshift indicator control unit
SC16 5A Control unit with display for radio and navigation system
Mobile telephone operating electronics control unit (2004-2006)
SC17 5A/7,5A Onboard power supply control unit (interior light)
Positive connection -1- (30), in main wiring harrness
Rear Climatronic operating and display unit (2003-2004)
SC18 5A Rear fresh air blower switch
SC18 5A 2004-2009: Rear Climatronic operating and display unit
SC19 5A Automatic anti-dazzle interior mirror
SC20 10A Onboard power supply control unit (heated exterior mirror)
SC21 5A 2003: Interior monitor send and receive module 1
2004-2009: Anti-theft and tilt system control unit
SC22 5A High-pressure sender
Air quality sensor
SC23 5A/10A Operating and display unit for camping equipment
Auxiliary heater operating and display unit
Residual heat relay
Remote control receiver for auxiliary coolant heater
SC24 5A/7,5A 2003-2004: Operating and display unit for camping equipment
2004-2009: Positive connection in roof wiring harness (interior lighting)
SC25 15A/25A Heated driver seat regulator
Heated front passenger seat regulator
Heated front seats control unit
Heated front passenger control unit
Front passenger seat temperature sensor (2003)
SC26 10A Tachograph (models with tachograph)
SC26 15A 2004-2009: 12V socket 2 (Multivan without tachograph and second battery)
SC27 15A Left fog light bulb
Right fog light bulb
Special vehicle fuse
SC28 5A Mirror adjustment switch
Driver door control unit (2006-2009)
SC29 25A Auxiliary heater control unit
SC30 5A Operating and display unit for camping equipment
SC30 5A Auxiliary coolant heater relay
SC31 25A Sliding sunroof adjustment control unit
SC31 5A 2006-2009: Onboard supply charger unit (camper only)
SC32 20A Headlight washer system relay
SC33 5A Tachograph (models with tachograph)
SC33 15A Tachograph (models with tachograph)
Folding exterior mirror control unit (models with tachograph and electric folding exterior mirror)
SC33 15A Folding exterior mirror control unit (2006-2009)
SC34 10A/15A/20A/25A 2003:
Vacuum pump for brakes
2004: Trailer socket
2004-2009:
12V socket 3
SC35 10A Onboard supply control unit (reversing light models with automatic gearbox)
SC36 5A/15A 2003-2004:
12V socket 4
2004-2009:
Operating and display unit for camping equipment
10-pin connector, purple (models with electric interface only (UF1))

Additional fuses

Fuses on relay carrier 1 (cockpit) 8-pin

It is under the fuse holders B and C.

Volkswagen Transporter (T5; 2003 - 2009) - fuse box diagram - passenger compartment - additional fuses (carrier 1 - cockpit - 8-pin)
Volkswagen Transporter (T5; 2003 – 2009) – fuse box diagram – passenger compartment – additional fuses (carrier 1 – cockpit – 8-pin)



№ Amps Connector/designation
A 40A 2003-2008: Heated rear window fuse
2008-2009: Fresh air blower fuse 2
B 30A Window regulator single fuse
C 40A 2004-2005: Special vehicle fuse 13



Fuses on relay carrier 2 (cockpit) 8-pin

It is under the fuse holders B and C.

Volkswagen Transporter (T5; 2003 - 2009) - fuse box diagram - passenger compartment - additional fuses (carrier 2 - cockpit - 8-pin)
Volkswagen Transporter (T5; 2003 – 2009) – fuse box diagram – passenger compartment – additional fuses (carrier 2 – cockpit – 8-pin)
№ Amps Connector/designation
A 40A 2007: Fresh air blower fuse 2
B 5A Fuse 1
C 40A 2007-2008: Fresh air blower fuse 2
4 Special vehicle equipment
5 Special vehicle equipment



Coupling station on left of seat box (10-pin)

Volkswagen Transporter (T5; 2003 - 2009) - fuse box diagram - passenger compartment - additional fuses (cstation on left of seat box (10-pin))
Volkswagen Transporter (T5; 2003 – 2009) – fuse box diagram – passenger compartment – additional fuses (cstation on left of seat box (10-pin))



№ Amps Connector/designation
A 40A Fuse 1 (30) (for models with second battery)
B – –
C – –
D 40A Auxiliary heater fuse



Relay carrier in left seat box (8-pin)

Volkswagen Transporter (T5; 2003 - 2009) - fuse box diagram - passenger compartment - additional fuses (relay carrier in left seat box (8-pin))
Volkswagen Transporter (T5; 2003 – 2009) – fuse box diagram – passenger compartment – additional fuses (relay carrier in left seat box (8-pin))
№ Amps Connector/designation
A – –
B – –
C 40A 2007-2009: Fresh air blower fuse 1
D 80A 2nd battery fuse (camper)
D 80A 2007-2009: Battery isolation relay fuse
D 40A 2007-2009: Fuse 1 (30)
E – –
F 40A Fuse 2 (30) (with second battery)



Coupling station on left A-pillar (10-pin)

Volkswagen Transporter (T5; 2003 - 2009) - fuse box diagram - passenger compartment - additional fuses (coupling station on left A-pillar (10-pin))
Volkswagen Transporter (T5; 2003 – 2009) – fuse box diagram – passenger compartment – additional fuses (coupling station on left A-pillar (10-pin))
№ Amps Connector/designation
A – Vacant
B 10A 2004: Differential lock fuse
C 15A 2006-2009: Taxi alarm system 2 fuse
D – Vacant



Engine Compartment Fuse Boxes

Fuse Box Location

Volkswagen Transporter (T5; 2003 - 2009) - fuse box location - engine compartment
Volkswagen Transporter (T5; 2003 – 2009) – fuse box location – engine compartment

Fuse Box Diagram (-SD-)

Volkswagen Transporter (T5; 2003 - 2009) - fuse box diagram - engine compartment (holder D)
Volkswagen Transporter (T5; 2003 – 2009) – fuse box diagram – engine compartment (holder D)

Assignment of the fuses in the engine compartment (fuse holder D)

№ Amps Function/component
SD1 5A Radiator fan control unit
Radiator fan control unit 2
SD2 5A Additional coolant pump relay
SD3 15A Magnetic clutch control unit
Cut-out relay for air conditioning system magnetic coupling
SD4 30A ABS control unit
SD5 15A Automatic gearbox control unit
SD6 30A ABS control unit
SD7 5A Radiator fan control unit 2
SD8 15A Lambda probe 2 heater
Lambda probe 2 heater after catalytic converter
SD9 5A Terminal 30 voltage supply relay
Engine control unit
SD10 5A Secondary air pump relay
Additional coolant pump relay
Exhaust gas recirculation valve
Charge pressure control solenoid valve
Activated charcoal filter system solenoid valve 1
Secondary air inlet valve
Variable intake manifold flap change-over valve
Exhaust gas recirculation cooler change-over valve
Fuel system diagnostic pump
SD11 5A 2003: Power steering control unit
SD12 5A Heater element for crankcase breather
Exhaust gas recirculation valve (2003)
SD13 10A Injector, cylinder 4
Injector, cylinder 5
Injector, cylinder 6
SD14 5A Fuel pump relay
Engine control unit
SD15 10A Reversing light switch
SD16 5A Air mass meter
SD17 5A TCS and ESP button
ABS control unit
SD18 5A 2004-2006: Onboard power supply control unit
SD19 5A Clutch pedal switch
Brake pedal switch
SD20 5A Air mass meter
Engine control unit
SD21 5A 2004-2009: Exhaust gas recirculation valve
SD22 10A Injector, cylinder 1~4
SD23 25A Automatic gearbox relay
SD24 5A Multifunction switch
SD25 25A Engine control unit (2004-2009)
Ignition transformer (2004-2009)
Ignition coil 4 with output stage
Ignition coil 5 with output stage
Ignition coil 6 with output stage
Fuse 13 on fuse holder D (2004-2009)
SD26 25A Ignition coil 1 with output stage
Ignition coil 2 with output stage
Ignition coil 3 with output stage
Fuse 22 on fuse holder D (2004-2009)
SD27 5A Additional coolant pump relay
SD28 15A 2004-2009: Treble tone horn
SD29 10A/20A 2003: Speedometer sender
2004-2009: Vacuum pump for brakes
SD30 15A Fuel system pressurisation pump
Fuel pump relay
Residual heat relay
SD31 10A/15A Lambda probe heater
Lambda probe 1 heater after catalytic converter
SD32 30A Engine control unit
SD32 5A Electric fuel pump 2 relay
SD33 5A Hall sender
Glow plug relay
Additional coolant pump relay
SD34 5A 2003: Radiator fan control unit
2004-2009: Onboard power supply control unit
SD35 10A Engine control unit
Variable intake manifold change-over valve
Inlet camshaft control valve 1
Exhaust camshaft control valve 1
SD36 25A/30A/40A Starter inhibitor relay



High power fuses (-SA-)

Volkswagen Transporter (T5; 2003 - 2009) - fuse box diagram - engine compartment (High power fuses (-SA-))
Volkswagen Transporter (T5; 2003 – 2009) – fuse box diagram – engine compartment (High power fuses (-SA-))
Volkswagen Transporter (T5; 2003 - 2009) - fuse box diagram - engine compartment (High power fuses (-SA-))
Volkswagen Transporter (T5; 2003 – 2009) – fuse box diagram – engine compartment (High power fuses (-SA-))
№ Amps Function/component
1 150A/175A/200A/225A C -Alternator
2 125A X-contact relief relay
Window regulator single fuse
Heated rear window fuse
Positive connection -2- (30), in main wiring harrness
Positive connection -4- (30), in main wiring harrness
Positive connection -5- (30), in main wiring harrness
Positive connection -6- (30), in main wiring harrness
Positive connection -7- (30), in main wiring harrness
Positive connection -8- (30), in main wiring harrness
Positive connection -9- (30), in main wiring harrness
Positive connection -10- (30), in main wiring harrness
3 50A/100A Battery isolation relay
Left sliding door control unit
Second battery charging circuit relay
Right sliding door control unit
Fuse 1 (30)
Fuse 2 (30)
4 70A/125A Positive connection (30), in engine compartment wiring harness
5 50A 2003-2004:
Onboard power supply control unit (up to January 2004) / Fuse 18 on fuse holder D (from January 2004)
2004:
Fuse 2
Electric socket 2
Electric socket 3
2006-2009:
Fuse 4 on fuse holder D
Fuse 6 on fuse holder D
6 50A/60A Glow plug relay
Automatic glow period control unit (2004-2009)
Secondary air pump relay
7 60A/70A/80A Radiator fan control unit
Radiator fan control unit 2
8 30A/40A/50A Radiator fan control unit
Radiator fan control unit 2
9 100A Ignition/starter switch
Positive connection (30), in main wiring harness
Positive connection -3- (30), in main wiring harrness
Positive connection -12- (30), in main wiring harrness



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Lincoln Navigator (UN173; 2000 – 2002) – fuse and relay  box diagram

Posted on by admin

Lincoln Navigator (UN173; 2000 – 2002) – fuse and relay  box diagram

Year of production: 2000, 2001, 2002



This article covers the first-generation Lincoln Navigator, manufactured between 1998 and 2002. It includes fuse box diagrams for the 2000, 2001 and 2002 models, provides details on the locations of the fuse panels within the vehicle, and explains the function and layout of each fuse and relay.

Passenger compartment fuse panel

Fuse box location

The fuse panel is located below and to the left of the steering wheel behind the cover.



Fuse box diagram

Lincoln Navigator (UN173; 2000 - 2002) - fuse and relay box diagram - passenger compartment
Lincoln Navigator (UN173; 2000 – 2002) – fuse and relay box diagram – passenger compartment



Assignment of the fuses and relays in the passenger compartment (2000 – 2002)

No.
 A
 Circuit Protected
1 25A Audio
2 5A Clock, Overhead Trip Computer, Electronic Automatic Temperature Control (EATC), Powertrain Control Module (PCM), Cluster, Navigation
3 20A Cigar Lighter, OBD-II Scan Tool Connector
4 7.5A Remote Entry Module, Mirrors, Memory Module, Adjustable Pedals, Drivers Seat, Power Fold Mirrors
5 15A Speed Control Module, Reverse Lamp, Daytime Running Lamp Relay, Reverse Sensing System, Autolock, E/C Mirror, Navigation
6 5A Cluster, Overhead Trip Computer, Compass, Steering Sensor, Brake Shift Interlock Solenoid, Air Suspension Module, GEM Module, Heated Mirror, Rear Defroster, Reverse Sensing System, Automatic Park Brake Release
7 5A Aux A/C Blower Relay, Console Blower
8 5A Remote Entry Module, Cell Phone, Clock, GEM Module, Navigation
9 — Not Used
10 — Not Used
11 30A Front Washer Pump Relay, Wiper Run/Park Relay, Wiper Ili/LO Relay, Windshield Wiper Motor, Rear Washer Pump Relay
12 15A Air Suspension Switch
13 20A Stop Lamp Switch (Lamps), Turn/Hazard Flasher, Speed Control Module
14 15A Rear Wipers, Running Board Lamps, Battery Saver Relay, Interior Lamp Relay, Accessory Delay Relay (Power Windows, Moonroof, Flip Windows, Audio), Homelink
15 5A Stop Lamp Switch, (Speed Control, Brake Shift Interlock, ABS, PCM Module Inputs), GEM Module, Autolock, Air Suspension Module
16 20A Headlamps (Hi Beams), Cluster (Hi Beam Indicator)
17 10A Heated Mirrors/Rear Window Defroster Indicator
18 5A Instrument Illumination (Dimmer Switch Power), Clock (Dimmer), Navigation Screen
19 — Not Used
20 5A Audio, Air Suspension Module, Memory Module, GEM Module
21 15A Starter Relay, Fuse 20, Digital Transmission Range Selector
22 10A Air Bag Module, EATC, EATC Blower Relay, Feeds Fuse 7
23 10A Electrochromic Mirror, Aux A/C, Heated Seats, Trailer Tow Battery Charge, Tum/Hazard Flasher, Console Blower Door Actuator, 4×4 Clutch Relay, 4 Wheel Anti-Lock Brake System (4WABS) Module
24 10A 2000-2001: Not Used
2002: EATC Module, EATC Blower/Flasher Relay, Climate Control Selector Switch, Feeds fuse 7
25 — Not Used
26 10A Right Side Low Beam Headlamp
27 5A Foglamp Relay and Foglamp Indicator
28 10A Left Side Low Beam Headlamp
29 5A Autolamp Module, Transmission Overdrive Control Switch
30 30A Passive Anti Theft Transceiver, Cluster, Ignition Coils, Powertrain Control Module Relay
31 10A Rear Integrated Control Panel (Audio), CD Player, Cell Phone
Relay 1 — Interior Lamp Relay
Relay 2 — Battery Saver Relay
Relay 3 — Rear Window Defroster Relay
Relay 4 — One Touch Down Window Relay
Relay 5 — ACC Delay Relay

Engine Compartment Fuse Box

Fuse box location

The power distribution box is located in the engine compartment (on the driver’s side).



Fuse box diagram

Lincoln Navigator (UN173; 2000 - 2002) - fuse and relay box diagram - engine compartment
Lincoln Navigator (UN173; 2000 – 2002) – fuse and relay box diagram – engine compartment



Assignment of the fuses and relays in the engine compartment (2000 – 2002)

№ Amp Rating Description
1 20A Power Point
2 30A Powertrain Control Module
3 30A Headlamps/Autolamps
4 20A Console Powerpoint
5 20A Trailer Tow Backup/Park Lamps
6 15A Parklamps/Autolamps, Feeds Passenger Compartment Fuse 18
7 20A Horn
8 30A Power Door Locks
9 15A Daytime Running Lamps (DRL), Fog Lamps
10 20A Fuel Pump
11 20 A Alternator Field
12 10A Rear Wipers
13 15A A/C Clutch
14 — Not Used
15 10A Running Board Lamps
16 — Not Used
17 10A Delayed Accessory (Audio, Flip Windows)
18 15A Powertrain Control Module, Fuel Injectors, Fuel Pump, Mass Air Flow Sensor
19 10A Trailer Tow Stop and Right Turn Lamp
20 10A Trailer Tow Stop and Left Turn Lamp
21 — Not Used
22 — Not Used
23 15A HEGO Sensors, Canister Vent, Transmission, CMS Sensor
24 — Not Used
101 30A Trailer Tow Battery Charge
102 50A Four Wheel Antilock Brake Module
103 50A Junction Box Battery Feed
104 30A 4×4 Shift Motor & Clutch
105 40A Climate Control Front Blower
106 — Not Used
107 30A Passenger Power Seat, Passenger Seat Lumbar
108 30A Trailer Tow Electric Brake
109 50A Air Suspension Compressor
110 30A Heated Seats/CCS
111 40A Ignition Switch Battery Feed (Run and Start Circuits)
112 30A Memory (Drivers Seat, Adjustable Pedals, Mirrors), Drivers Seat Lumbar
113 40A Ignition Switch Battery Feed (Run and Accessory Circuits)
114 30A Climate Control Auxilary Blower
115 — Not Used
116 40A Rear Window Defroster, Heated Mirrors
117 — Not Used
118 — Not Used
201 — Trailer Tow Park Lamp Relay
202 — Front Wiper Run/Park Relay
203 — Trailer Tow Backup Lamp Relay
204 — A/C Clutch Relay
205 — Rear Wiper Down
206 — Fog Lamp Relay
207 — Front Washer Pump Relay
208 — Rear Washer Pump Relay
209 — Rear Wiper Up Relay
301 — Fuel Pump Relay
302 — Trailer Tow Battery Charge Relay
303 — Front Wiper Hi/Lo Relay
304 — Powertrain Control Module Relay
401 — Not Used
501 — Powertrain Control Module Diode
502 — A/C Clutch Diode
503 — Automatic Park Brake Release Diode
601 30A Delayed Accessory (Power Windows, Flip Windows, Radio, Moonroof)
602 — Not Used
502 — A/C Clutch Diode
503 — Not Used
601 30A Delayed Accessory (Power Windows, Flip Windows, Radio)
602 — Not Used



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura CL (YA4; 2003) – fuse and relay box diagram

Posted on by admin

Acura CL (YA4; 2003) – fuse and relay box diagram

Year of production: 2003



This article covers the second-generation  Acura CL, produced from 1997 to 2003. It includes fuse box diagrams for the 2003 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Engine compartment

Fuse box diagram

Acura CL (YA4; 2003)- fuse and relay box diagram - engine compartment
Acura CL (YA4; 2003)- fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Fuse Ampere rating [A] Circuits Protected
1*1  20 Condenser Fan
1*2 30 Condenser Fan
2 7,5 MG Clutch
3 60 IG1 Main
4 40 Rear Window Defogger
5 40 Heater Motor
6*1 20 TCS
6*2 40 VSA
6*3 — Not used
7 40 Power Seat
8 40 Power Window Motor
9 40 Back Up, ACC
10 15 Spare Fuse
11 10 Spare Fuse
12 7,5 Spare Fuse
13*1,*3 20 Cooling Fan
13*2 30 Cooling Fan
14 120 Battery
15 30 Spare Fuse
16 20 Spare Fuse
17 15 Hazard
18 30 ABS Motor
19 15 ACG S
20 20 Stop
21 20 ABS F/S Relay
22 20 Right Headlight
23 — Not used
24 20 Left Headlight

*1 – Premium model

*2 – Type-S with A/T

*3 – Type-S with M/T



Passenger compartment

Fuse box diagram (driver’s side)

Acura CL (YA4; 2003)- fuse and relay box diagram - passenger compartment (driver's side)
Acura CL (YA4; 2003)- fuse and relay box diagram – passenger compartment (driver’s side)



Assignment of the fuses in the passenger compartment (driver’s side)

Fuse Ampere rating [A] Circuits Protected
1 15 Fuel Pump
2 10 Main SRS
3 7,5 Heater Control, A/C Clutch Relay, Cooling Fan Relay
4 7,5 Mirror, Heated Seat, Heated Mirror
5 7,5 Daytime Running Lights*
6 15 ECU (PCM), Cruise Control, VSA
7 7,5 Side SRS
8 7,5 ACC Relay, Navigation
9 7,5 Instrument Panel, Back-up Lights, Memory Seat
10 7,5 Turn Signals
11 15 IG Coil
12 30 Wiper, Washer
13 7,5 Starter Signal

*-On Canadian models



Fuse box diagram (passenger’s side)

Acura CL (YA4; 2003)- fuse and relay box diagram - passenger compartment (passenger's side)
Acura CL (YA4; 2003)- fuse and relay box diagram – passenger compartment (passenger’s side)



Assignment of the fuses in the passenger compartment (passenger’s side)

Fuse Ampere rating [A] Circuits protected
1 30 Left Power Window
2 20 Driver’s Power Seat Reclining, Memory Seat
3 20 Heated Seat
4 20 Driver’s Power Seat Sliding, Memory Seat
5 20 Passenger’s Power Seat Sliding
6 20 Passenger’s Power Seat Reclining
7 30 Moonroof Motor
8 20 Right Power Window
9 20 Radio, Power Outlet
10 10 Navigation System, Daytime Running Lights*1, OnStar*2
11 7,5 Interior Light, Seat Memory, HomeLink
12 20 Power Door Locks
13 15 Clock, Back Up, Small Light
14 7,5 ABS Motor Check
15 — Not used
16 — Not used

*1 – On Canadian models

*2 – On cars with navigation system



VSA fuse box (on type S with A/T)

Fuse box location

The VSA fuse box is located under the interior fuse box on the passenger’s side of the dashboard.



Fuse box diagram

Acura CL (YA4; 2003)- fuse and relay box diagram - passenger compartment (VSA fuse box)
Acura CL (YA4; 2003)- fuse and relay box diagram – passenger compartment (VSA fuse box)



Assignment of the fuses in the VSA fuse box

Fuse Ampere rating [A] Circuits protected
1 20 VSA F/S Relay
2 20 VSA Throttle Motor
3 — Not Used



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Lincoln Aviator (UN152; 2002 – 2003) – fuse and relay box diagram

Posted on by admin

Lincoln Aviator (UN152; 2002 – 2003) – fuse and relay box diagram

Year of production: 2002, 2003

This article focuses on the first-generation Lincoln Aviator (UN152), manufactured between 2002 and 2005. It includes fuse box diagrams for the 2002 and 2003 models, provides information on the location of the fuse panels within the vehicle, and explains the function and layout of each fuse and relay.



Passenger compartment fuse panel

Fuse box location

The fuse panel is located under the instrument panel to the left of the steering column. The relays are located on the reverse side of the passenger compartment fuse panel. To access the relays, you must remove the fuse panel.



Fuse box diagram

Lincoln Aviator (UN152; 2002 - 2003) - fuse box diagram - passenger compartment box
Lincoln Aviator (UN152; 2002 – 2003) – fuse box diagram – passenger compartment box



Assignment of the fuses in the Instrument panel (2002 – 2003)

№ Amp Rating Description
1 30A Moonroof, Driver seat switch
2 10A VAPS module, Memory seat module, Body security module, TPMS
3 20A Radio, Navigation
4 5A Front wiper module
5 15A Flasher relay (turn/hazards)
6 5A Power antenna, Radio, Moonroof motor, Driver window motor, Navigation
7 15A Heated mirrors, DEATC module
8 5A Daytime Running Lamps (DRL) module
9 10A Back-up lamps (DTRS)
10 10A Heated backlight relay coil, Climate seat modules, Auxiliary A/C temperature blend/mode actuator, A/C clutch relay contact
11 20A Not used (spare)
12 15A Restraints module
13 10A Brake shift interlock
14 5A Cornering lamps
15 5A Instrument cluster, Rear wiper module, TPMS
16 15A Cigar lighter, OBD II, Liftgate release relay coil and contacts
17 15A Delayed accessory relay coil, Battery saver relay coil and contacts
18 5A Not used (spare)
19 15A Washer pump
20 5A Shifter, Clock, Power mirror switch, DVD
21 10A Brake pressure switch (ABS), IVD switch, Flasher relay
22 10A ABS module
23 5A Sunload/Autolamp sensor (SecuriLock transceiver LED)
24 20A Subwoofer, Navigation
25 5A Puddle lamp relay coil, Trailer tow batten charge relay coil
26 5A SecuriLock transceiver
27 5A Rear park assist, VAPS module
28 5A Radio, Navigation
29 10A DTRS, Feed to Fuse 28
30 5A Instrument cluster, Compass module, Auxiliary A/C relay coil



Relay in passeneger compartment (located on the reverse side of the fuse box)

Relay box diagram

Lincoln Aviator (UN152; 2002 - 2003) - fuse box diagram - passenger compartment box (relay)
Lincoln Aviator (UN152; 2002 – 2003) – fuse box diagram – passenger compartment box (relay)



Assignment of the relays in the Instrument panel (2002 – 2003)

Relay № Description
1 Flasher relay
2 Heated backlight relay
3 Delayed accessory relay
4 Open
5 Batteiy saver relay
6 Open
7 Open



Engine compartment (power distribution box)

Fuse box diagram

Lincoln Aviator (UN152; 2002 - 2003) - fuse box diagram - engine compartment box
Lincoln Aviator (UN152; 2002 – 2003) – fuse box diagram – engine compartment box



Assignment of the fuses in the engine compartment (2002 – 2003)

№ Amp Rating Description
1 60A PJB
2 30A Door locks (BSM)
3 — Not used
4 40A Heated backlight/mirrors
5 40A Anti-lock Brake System (ABS) module (pump)
6 60A Delayed accessory
7 20A DRL module
8 20A Electric cooling fan
9 20A Headlamp switch
10 30A ABS module (valves)
11 40A PTEC relay contacts
12 50A Ignition/Starter relay
13 40A Trailer tow relays
14 15 A Brake lamp feed
15 10A Keep alive power (PTEC/cluster/DEATC)
16 20A Power point #3
17 20A Rear wiper module
18 20A 4×4 module
19 30A Driver window motor
20 30A Electric trailer brakes
21 30A Memory seat module
22 20A Main exterior lamps (low beam headlamps, high beam headlamps, fog lamps)
23 30A Ignition switch
24 20A Horn relay
25 20A Power point #1
26 20A Fuel pump relay contacts
27 20A Trailer tow lamps
28 20A Power point #2
29 60A PJB
30 30A Front wiper module
31 30A Climate-controlled seats modules
32 30A Passenger seat switch
33 30A Auxiliary blower motor
34 20A Right HID relay
35 20A Left HID relay
36 40A Blower motor
37 15 A A/C clutch relay, TXV, Transmission, Speed control
38 15 A HEGO, VMV, Canister vent, IMCC-LSRC, Heated PCV, EGR module
39 15 A Injectors
40 15 A PTEC, Mass Air Flow (MAF) sensor, Fuel pump relay
41 25A Coil on plug, PTEC relay
42 10A Right low beam (halogen)
43 10A Left low beam (halogen)
44 15 A Fog lamp relay
45 2A Brake Pressure Switch
46 20A High beam
47 — Horn relay
48 — Fuel pump relay
49 — High beam relay
50 — Fog lamp relay
51 — Not used
52 — A/C clutch relay
53 — Trailer tow right turn relay
54 — Trailer tow left turn relay
55 — Blower motor relay
56 — Starter motor relay
57 — PTEC relay
58 — Ignition relay
59 — Driver brake applied relay
60 — PCM diode
61 — A/C clutch diode
62 30A Power windows (Circuit breaker)

Auxiliary relay box

Relay box diagram

Lincoln Aviator (UN152; 2002 - 2003) - fuse box diagram - engine compartment box - auxiliary relay box
Lincoln Aviator (UN152; 2002 – 2003) – fuse box diagram – engine compartment box – auxiliary relay box



Assignment of the fuses in the auxiliary relay box (2002 – 2003)

Relay № Description
64 Right HID relay
65 Left HID relay
66 EDF relay



Rear relay box

Relay box location

The relay box is located on the rear passenger side quarter trim panel.



Relay box diagram

Lincoln Aviator (UN152; 2002 - 2003) - fuse box diagram - rear compartment box
Lincoln Aviator (UN152; 2002 – 2003) – fuse box diagram – rear compartment box



Assignment of the fuses in the rear relay box (2002 – 2003)

Relay № Description
1 Liftgate release solenoid
2 Open
3 Open
4 Trailer tow back-up lamps
5 Open
6 Open
7 Trailer tow battery charge
8 Trailer tow park lamps
9 Open
10 2003: Puddle lamps
2004-2005: Open
Diode 11 Open
Diode 12 Open



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura CL (YA4; 2000 – 2002) – fuse and relay box diagram

Posted on by admin

Acura CL (YA4; 2000 – 2002) – fuse and relay box diagram



Year of production: 2000, 2001, 2002



This article covers the second-generation  Acura CL, produced from 1997 to 2003. It includes fuse box diagrams for the 2001 and 2002 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Engine compartment

Fuse box diagram

Acura CL (YA4; 2000 - 2002)- fuse and relay box diagram - engine compartment
Acura CL (YA4; 2000 – 2002)- fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Fuse Ampere rating [A] Circuits Protected
1*1  20 Condenser Fan
1*2 30 Condenser Fan
2 7,5  MG Clutch
3 60 IG1 Main
4 40  Rear Window Defogger
5 40 Heater Motor
6*1 20 TCS
6*2 40 VSA
7 40 Power Seat
8 40 Power Window Motor
9 40 Back Up, ACC
10 15 Spare Fuse
11 10 Spare Fuse
12 7,5 Spare Fuse
13*1 20 Cooling Fan
13*1 30 Cooling Fan
14 120 Battery
15 30 Spare Fuse
16 20 Spare Fuse
17 15 Hazard
18 30 ABS Motor
19 15 ACG S
20 20 Stop
21 20 ABS F/S Relay
22 20 Right Headlight
23 — Not used
24 20 Left Headlight

*1 – Premium model

*2 – Type S

Passenger compartment

Fuse box diagram (driver’s side)

Acura CL (YA4; 2000 - 2002)- fuse and relay box diagram - passenger compartment (driver's side)
Acura CL (YA4; 2000 – 2002)- fuse and relay box diagram – passenger compartment (driver’s side)



Assignment of the fuses in the passenger compartment (driver’s side)

Fuse Ampere rating [A] Circuits Protected
1 15 Fuel Pump
2 10 Main SRS
3 7,5 Heater Control, A/C Clutch Relay, Cooling Fan Relay
4 7,5 Mirror, Heated Seat, Heated Mirror
5 7,5 Daytime Running Lights*
6 15 ECU (PCM), Cruise Control, VSA
7 7,5 Side SRS
8 7,5 ACC Relay, Navigation
9 7,5 Instrument Panel, Back-up Lights, Memory Seat
10 7,5 Turn Signals
11 15 IG Coil
12 30 Wiper, Washer
13 7,5 Starter Signal

*-On Canadian models

Fuse box diagram (passenger’s side)

Acura CL (YA4; 2000 - 2002)- fuse and relay box diagram - passenger compartment (passenger's side)
Acura CL (YA4; 2000 – 2002)- fuse and relay box diagram – passenger compartment (passenger’s side)



Assignment of the fuses in the passenger compartment (passenger’s side)

Fuse Ampere rating [A] Circuits protected
1 30 Moonroof Motor
2 20 Driver’s Power Seat Reclining, Memory Seat
3 20 Heated Seat
4 20 Driver’s Power Seat Sliding, Memory Seat
5 20 Passenger’s Power Seat Sliding
6 20 Passenger’s Power Seat Reclining
7 — Not used
8 20 Right Power Window
9 20 Radio, Power Outlet
10 10 Navigation System, Daytime Running Lights*
11 7,5 Interior Light, Seat Memory, HomeLink
12 20 Power Door Locks
13 15 Clock, Back Up, Small Light
14 7,5 ABS Motor Check
15 20 Driver’s Power Window
16 — Not used

*-On Canadian models

VSA fuse box (on type S)

Fuse box location

The VSA fuse box is located under the interior fuse box on the passenger’s side of the dashboard.



Fuse box diagram

Acura CL (YA4; 2000 - 2002)- fuse and relay box diagram - passenger compartment (VSA fuse box)
Acura CL (YA4; 2000 – 2002)- fuse and relay box diagram – passenger compartment (VSA fuse box)

Assignment of the fuses in the VSA fuse box

Fuse Ampere rating [A] Circuits protected
1 20 VSA F/S Relay
2 20 VSA Throttle Motor
3 — Not Used



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Polo (9N; 2002 – 2009) – fuse and relay box diagram

Posted on by admin

Volkswagen Polo (9N; 2002 – 2009) – fuse and relay box diagram

Year od production:2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009



This article covers the fourth-generation Volkswagen Polo (Mk4/9N), manufactured between 2002 and 2009. It includes fuse box diagrams for models from 2002 through 2009, provides details on the location of the fuse panels within the vehicle, and explains the function and layout of each fuse and relay.

Passenger Compartment Fuse Box

Fuse Box Location

The fuse panel is located behind an access panel on driver’s side edge of the instrument panel.



Fuse Box Diagram

Volkswagen Polo (9N; 2002 - 2009) - fuses and relay box diagram - passenger compartment
Volkswagen Polo (9N; 2002 – 2009) – fuses and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment

№ Amps Function/component
1 10A Rear window wiper motor
2 5A Licence plate light
3 5A Rear left fog light bulb
Trailer socket, rear fog light
4 5A Cruise control system switch
Clutch pedal switch
Brake pedal switch
Radiator fan relay
Fuel pump control unit
5 5A Engine control unit
Exhaust gas recirculation
6 5A Headlight range control regulator
7 7.5A/5A 2002-2004:
Exhaust gas recirculation
Air-mass meter
Oil level sensor
Electrohydraulic steering
Crankcase breather heater element
2005-2009:
Oil level and oil temperature sender
Power steering control unit
Crankcase breather heater element
8 5A Onboard power supply control unit
Mirror heating
9 10A 2002-2004 (FSI):
Lambda probe
Crankcase heater
Pressure regulating valve
10 5A Mobile telephone operating electronics control unit (2006-2009)
Control unit with display for radio and navigation system
Onboard power supply control unit
Radio
11 5A Mirror adjustment switch
Folding exterior mirror control unit
12 5A Right tail light bulb
Right side light bulb
13 5A Left side light bulb
Left tail light bulb
14 10A Crankcase breather heater
Secondary air pump relay
Exhaust gas recirculation
Intake manifold flap
Hall sender
15 10A Multi-function switch
Automatic gearbox control unit
16 10A lntermittent wiper switch
Onboard power supply control unit
Rear window wiper motor
Windscreen and rear window washer pump
17 5A Engine control unit
18 5A Climatic, Climatronic, radiator fan control unit, navigation, circulation pump, illumination of functions, interior monitor sensor, mirror
19 10A Reversing light switch
Parking aid control unit
Left washer jet heater element
Right washer jet heater element
Selector lever illumination (2002-2004)
20 5A Control unit in dash panel insert
21 10A Right main beam bulb
22 10A Left main beam bulb
23 10A Traction control system switch
TCS and ESP button
Tyre pressure monitor display button
Steering angle sender, only models with ESP
ABS control unit
24 10A/15A 2002-2006:
Onboard supply control unit, tank filler flap locking motor
Onboard supply control unit, central locking motor in rear lid
2006-2009:
Heated driver seat regulator
Heated front passenger seat regulator
Heated front seats control unit
25 10A Injectors
Camshaft adjuster
Thermostat heater
Fuel purging valve
26 10A 2002-2004: Brake lights
2005-2009: Coolant pump relay (only BJX)
27 5A Steering angle sender
Control unit in dash panel insert
28 10A Onboard supply control unit, relay for interior lights
Door warning lamp relay
29 5A Climatronic control unit
Air conditioning system control unit
Mobile telephone operating electronics control unit
16-pin connector, diagnostics connection
30 5A Onboard power supply control unit, shift lock, rain sensor
31 25A Driver door control unit
Driver side window regulator motor
32 15A 2002-2004:
Seat heating
2005-2009:
Brake light switch
Brake light suppression relay
33 15A Alarm horn
34 15A/20A 2002-2004:
Socket in luggage compartment (Variant)
2005-2006:
12V socket
2006-2009:
Cigarette lighter
12V socket
Blocking diode
35 20A Sliding sunroof adjustment control unit
36 25A Fresh air blower switch
Fresh air blower control unit
37 15A/20A Ignition transformer
38 25A Rear left door control unit
39 25A Front passenger side door control unit
40 10A/20A/30A Engine control unit
41 15A Fuel pump
42 15A/20A NOx regulator, Lambda probe, exhaust gas cooling
43 15A Right headlight dipped beam bulb
Right headlight range control motor
44 15A Left fog light bulb
Right fog light bulb
45 15A Engine control unit
46 20A Onboard power supply control unit
Automatic intermittent wash and wipe relay
47 20A/30A Onboard power supply control unit
Heated rear window
48 15A Onboard power supply control unit, Turn signals
49 10A/15A 2002-2006:
Cigarette lighter
2006-2009:
Onboard supply control unit, tank filler flap locking motor
Onboard supply control unit, central locking motor in rear lid
50 15A 2002-2004:
Central locking
2005-2009:
Anti-theft alarm ultrasonic sensor
Comfort system central control unit
51 15A Control unit with display for radio and navigation system
Dipped headlight control unit, on/off for Coming home system
Radio
52 20A Headlight washer system relay
Onboard supply control unit
Treble tone horn, Bass tone horn
53 25A Rear right door control unit
54 15A Left headlight dipped beam bulb
Headlight range control motor



Relay panel

The relay panel is located under the driver’s side of the instrument panel.

Volkswagen Polo (9N; 2002 - 2009) - fuses and relay box diagram - passenger compartment (relay panel)
Volkswagen Polo (9N; 2002 – 2009) – fuses and relay box diagram – passenger compartment (relay panel)



Assignment of the fuses in the relay panel

№ Amps Description
1 2002-2004:
Driving school mode relay
2005-2009:
Secondary air pump relay (engine code BJX)
Folding exterior mirror control unit
2 2005-2009:
Folding exterior mirror control unit
Driving school mode relay
3 Glow plug relay (Diesel engines)
Motronic current supply relay (2002-2007)
4 Fuel pump relay
5 2002-2004:
Warning lamps relay
2005-2007:
Door warning lamps relay
Brake light suppression relay
6 Headlight washer system relay
7 2002-2004: Starter inhibitor relay
2005-2009: Dipped headlight control unit, on/off (coming home system)
8 Low heat output relay (Diesel engines)
Coolant pump relay (2005-2007, engine code BJX)
9 High heat output relay (Diesel engines)
10 Motronic current supply relay
Radiator fan relay (engine codes ASZ, BLT)
Current supply relay (2002-2004)
11 X-contact relief relay
12 Fuel supply relay
13 Fuel pump relay (Petrol engines)
14 40A Diesel engines fuses:
Heater element fuse 1
Heater element fuse 2
Heater element fuse 3
15 2002-2004:
Diesel direct injection system relay
2005-2009:
Terminal 30 voltage supply relay (Diesel engines)
Motronic current supply relay (Petrol engines, not engine codes BUD, BTS)
Fuel pump relay (2005-2007, engine codes BMD, BME)
F1 10A Trailer socket
F2 15A Heated driver seat regulator
Heated front passenger seat regulator
Heated driver seat control unit
Heated front passenger seat control unit
F3 10A/5A Driving school mode
Footwell light switch
Warning buzzer switch
Control unit in dash panel insert (South Africa, from 2006, 5A)
F4 10A Driving school mode
12V socket



Engine Compartment Fuse Box

Fuse Box Location

The main fuse box located on top of the battery in the engine compartment.



Fuse Box Diagram (version 1)

Volkswagen Polo (9N; 2002 - 2009) - fuses and relay box diagram - engine compartment (version 1)
Volkswagen Polo (9N; 2002 – 2009) – fuses and relay box diagram – engine compartment (version 1)



Assignment of the fuses in the engine compartment (version 1)

№ Amps Function/component
S162 175A Alternator
S163 110A Fuse holder B
S164 50A Power steering control unit
S176 50A Glow plug activation control unit
Engine glow plugs
Secondary air pump motor
S177 40A Radiator fan (models with air conditioning system or Climatronic)
S178 40A ABS control unit
S179 25A ABS control unit
S180 30A Radiator fan
S267 – –
S268 5A Onboard power supply control unit
S269 5A Radiator fan control unit
S270 – –
S271 5A Automatic gearbox control unit
S272 – –
S273 – –
S274 – –



Fuse Box Diagram (version 2)

Volkswagen Polo (9N; 2002 - 2009) - fuses and relay box diagram - engine compartment (version 2)
Volkswagen Polo (9N; 2002 – 2009) – fuses and relay box diagram – engine compartment (version 2)



Assignment of the fuses in the engine compartment (version 2)

№ Amps Function/component
S162 175A Alternator
S163 110A Fuse holder B
S164 40A Radiator fan (models with air conditioning system or Climatronic)
S176 40A ABS control unit
S177 50A Power steering control unit
S178 50A Glow plug activation control unit
Engine glow plugs
Secondary air pump motor
S179 25A ABS control unit
S180 30A Radiator fan
S267 5A Radiator fan control unit
S268 10A ABS control unit
S269 5A Onboard power supply control unit
S270 5A Diesel direct injection system control unit (models with engine code BMT)
S271 5A Automatic gearbox control unit
S272 – –
S273 – –
S274 – –



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Beetle (Sedan 111, Sedan 113, Converible; 1973) – fuse and relay box diagram

Posted on by admin

Volkswagen Beetle (Sedan 111, Sedan 113, Converible; 1973) – fuse and relay box diagram

Year of production: 1973



The classic compact car  Volkswagen Beetle was produced from 1938 to 2003. In this article, you will find fuse box diagrams for the Volkswagen Beetle models from – 1973, get information about the location of the fuse panels inside the vehicle, and learn about the assignment of each fuse (fuse layout) and relay.

Passenger compartment

Fuse box diagram

Volkswagen Beetle (1973) - fuse and relay box diagram
Volkswagen Beetle (1973) – fuse and relay box diagram



Assignment of the fuses in the passenger compartment

Fuse Ampere rating Description
1 8 Parking and side marker lights, left, tail lights left
2 8 Parking and side marker lights, right, tail right left
3 8 Low beam left
4 8 Low beam right
5 8 High beam left
6 8 High beam right, high beam indicator light
7 8 License flasher system
8 8 Emergency flasher system
9 16 Interior light
10 16 Windshield wipers, rear windows defrogger (switch current), fresh air fan
11 8 Horn, stop lights, control valve* and AFT warning lights** (Automatic Stick Shift)
12 8 Fuel gauge, turn signals, brake warning light, warning lights for oil pressure, turning signals and generator

* if this fuse is detective, the transmission cannot be shifted

** trailer hauling only

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
