Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram

Posted on 23 July 201818 July 2025 by admin

Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram

Year of production: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011

The Volkswagen New Beetle, a compact car, was manufactured from 1998 to 2011. In this article, you’ll find fuse box diagrams for the 1998 through 2011 models, along with information on the location of the fuse panels inside the vehicle and details on the function and layout of each fuse and relay.

Location

Fuses -S162-, -S163-, -S164-, -S176-, -S177-, -S178-, -S179-, -S180- on fuse holder/battery
Fuses -S43-, -S111-, -S130-, -S144-, -S283-, -S329-, -S337-, -S338-, on the 13 position additional relay carrier above the relay plate
Fuses (S) in fuse holder, left dash panel

Engine compartment

Fuses (S) on fuse holder/battery

Assignment of the fuses in the engine compartment (battery)

№	A	Function/component
1	50	V101 – Secondary air pump motor, models with secondary air pump only J359 – Low heat output relay, models with diesel engines, manual gearbox only J360 – High heat output relay, models with diesel engines, manual gearbox only
2	50	J17 – Fuel pump relay (17/30) J370 – Glow plug activation control unit, models with diesel engines only
3	40	J293 – Radiator fan control unit (T4e/1) V7 – Radiator fan
4	110	J59 – X – contact relief relay (7/30)
5	110 150	C – Alternator (90A) C – Alternator (120A)
6	30	J104 – ABS control unit (T47a/1)
7	30	J104 – ABS control unit (T47a/32)
8	30	F18 – Radiator fan thermal switch J293 – Radiator fan control unit (T4e/3)

Passenger compartment

Fuses on the 13 position additional relay carrier above the relay plate

Assignment of the fuses in the passenger compartment (dashboard)

№	A	Function/component
A	30	Window regulator thermal fuse -S43-
B		Brake vacuum pump fuse -S283-^1 Vacant^2,7
C	30^3 10^7	Rear spoiler motor fuse -S329-^*3Secondary air pump fuse -S130-
F	–	Vacant
G	–	Vacant
H	15	Anti-theft alarm system fuse and immobilizer fuse -S111-^4 Telematics fuse -S338-^5
J	15^4 20^2,6	Anti-theft alarm system central locking fuse -S144-^4 Brake vacuum pump fuse -S283-^2 Fuse for dual clutch gearbox mechatronic unit -S337-^*6
Relay positions – relay on relay plate
1	J4 – Dual tone horn relay (53)
2	J59 – X-contact relief relay (100)
3	Vacant
4	J17 – Fuel pump relay (409) J52 – Glow plug relay (103)^*8
5	Automatic intermittent wash and wipe relay -J31- (377), (192), (389)
Relay positions on the 13 position additional relay carrier above the relay plate
1	Vacant
2	Vacant
3	Starter inhibitor relay, clutch pedal switch -J434- (53)^*9
4	Fog light relay -J5- (53)
5	Vacant
6	Vacant
7	Daytime running lights change-over relay -J89- (173)^*10
8	Heated exterior mirror relay -J99- (53)^*11
9	Alarm horn relay -J641- (for telematics only)
10	Turn signals relay for anti-theft alarm -J237- (for telematics only) Radiator fan 3rd speed relay -J135- (100) (only 1.8 l-engine) Secondary air pump relay -J299- (100) (only petrol engines, from July 2005) Low heat output relay -J359- (100) (engine code BEW only, from June 2003 up to December 2006)
11	Starter inhibitor and reversing light relay -J226- (126) (only for automatic gearbox 01M) Starter inhibitor relay -J207- (176) (from model year 2005; only for 6-speed automatic gearbox 09G, with Tiptronic)
12	Terminal 30 voltage supply relay -J317- (109) (for engine codes BPR, BPS only; models with diesel engines only)
13	High heat output relay -J360- (53) (engine code BEW only, from June 2003 up to December 2006)
1 – for models with manual gearbox, model year 2003 2 – models with automatic gearbox, from model year 2004 3 – models with 1.8 l engine, model year 2003 up to 2005 4 – up to model year 2003 5 – from model year 2004 6 – for models with engine code BEW; with dual clutch gearbox DSG 02E; from model year 2004 7 – from model July 2005 8 – engine codes ALH, ATD, AXR, BSW only 9 – only manual gearbox 10 – daytime running lights only 11 – American markets only; only models with mechanical window regulator

Fuses (S) in fuse holder, left dash panel

Volkswagen New Beetle (1998 - 2011) - fuse and relay box diagram - passenger compartment (dash panel) — Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram – passenger compartment (dash panel)

Assignment of the fuses in the passenger compartment (dashboard)

№	A	Function/component
1	10	J99 – Heated exterior mirror relay^*1 J131 – Heated driver seat control unit (T6/5) J132 – Heated front passenger seat control unit (T6b/5) W6 – Glove compartment light Z20/ Z21 – Left/right washer jet heater element
2	10	J1 – Turn signal relay (T7/6) M5/ M7 – Front left/right turn signal bulb M6/ M8 – Rear left/right turn signal bulb
3	5	E1 – Lighting switch E20 – Switches and instruments illumination regulator J5 – Fog light relay (4/86)
4	5	X – number plate light
5	7,5	E45 – Cruise control system switch^2 E159 – Fresh air/air recirculation flap switch (T8b/5) E184 – Fresh air and air recirculation switch^1 E227 – Cruise control system (CCS) SET button (T4q/3), CCS only^1 E231 – Exterior mirror heater button F36 – Clutch pedal switch (T4q/3) F47 – Brake pedal switch G65 – High-pressure sender (T3e/3) J89 – Daytime running lights change-over relay (8/86) J255 – Climatronic control unit (T16c/9)^1 J293 – Radiator fan control unit (T14/9) J386 – Driver door control unit (T18d/3) T16 – 16-pin connector, self-diagnosis (T16/1T16/16) V48 – Left headlight range control motor^1 V49 – Right headlight range control motor^1 Y2 – Digital clock^2 Y7 -Automatic anti-dazzle interior mirror^2
6	5	J393 – Convenience system central control unit (T23/5) Vacant, model year 2004
7	10	F4 – Reversing light switch F125 – Multifunction switch (T10t/10)^*2 G22 – Speedometer sender J226 – Starter inhibitor and reversing light relay (T9/5) K142 – Selector lever position P/N warning lamp M16 / M17 – Left/right reversing light bulb T16 – 16-pin connector, self-diagnosis (T16/1)
8	–	Vacant J412 – Mobile telephone operating electronics control unit (T18d/10)^*3
9	5	E256 – TCS and ESP button (T6/6) J104 – ABS control unit (T47a/4) G85 – Steering angle sender (T6k/5)
10	10	J285 – Control unit in dash panel insert (T32/30) J393 – Convenience system central control unit (T23/17), models with window regulator from 2003 only R – Radio Y2 – Digital clock
11	5	J285 – Control unit in dash panel insert (T32/1) N110 – Selector lever lock solenoid
12	7,5	T16 – 16-pin connector, self-diagnosis (T16/16) J502 – Tyre pressure monitor control unit (T20b/3)^*2
13	10	F – Brake light switch
14	10	J220 – Motronic control unit (T121/62) J271 – Motronic current supply relay J393 – Convenience system central control unit (T23/22), models with window regulator from model year 2003
15	5	G85 – Steering angle sender (T6p/4) for TCS/ESP J217 – Automatic gearbox control unit (T68/45) J285 – Control unit in dash panel insert (T32/23) Y2 – Digital clock^*2
16	10	J293 – Radiator fan control unit (T14/4)
17	–	Vacant
18	10	J5 – Fog light relay J285 – Control unit in dash panel insert (T32/a17) J607 – Right dip and main beam switch relay (for gas discharge bulb)^*1 M32 – Right main beam bulb
19	10	J606 – Left dip and main beam switch relay (for gas discharge bulb)^*1 M30 – Left main beam bulb
20	15	J607 – Right dip and main beam switch relay (for gas discharge bulb)^*1 M31 – Right headlight dipped beam bulb
21	15	J606 – Left dip and main beam switch relay (for gas discharge bulb)^*1 M29 – Left headlight dipped beam bulb
22	5	J285 – Control unit in dash panel insert (T32/26) M3 – Right side light bulb^2 M22 – Right brake and tail light bulb M34 – Front right side marker bulb^2 M36 – Front right turn signal and side marker bulb M38 – Rear right side marker bulb
23	5	J285 – Control unit in dash panel insert (T32/27) M1 – Left side light bulb^2 M21 – Left brake and tail light bulb M33 – Front left side marker bulb^2 M35 – Front left turn signal and side marker bulb M37 – Rear left side marker bulb
24	20	E22 – Intermittent wiper switch (T8c/8) J31 – Automatic intermittent wash and wipe relay (T18a/13), for headlight washer system only
25	25	E9 – Fresh air blower switch (T6d/2) J255 – Climatronic control unit (T16b/14)^1 V2 – Fresh air blower, for Climatronic only^1
26	25	E15 – Heated rear window switch (T6b/5) Z1 – Heated rear window
27	15	U1 – Cigarette lighter, from model year 2007 J29 – Blocking diode, from model year 2007 U18 – 12 V socket -2- U19 – 12 V socket 3, in luggage compartment
28	15	G6 – Fuel system pressurisation pump J17 – Fuel pump relay (T9b/1)^*3
29	15	J220 – Motronic control unit (T121/3) J248 – Diesel direct injection system control unit (T121/37)^1 N30/ N31/ N32/ N33/ N83 – Injector, cylinder^2 J623 – Engine control unit (T80/4), engine code CBPA only^*2 G70 – Air mass meter, (T5d/2), engine code BEW only, from June 2003 up to December 2006 J248 – Diesel direct injection system control unit, (T94/18), engine code BEW only, from June 2003 up to December 2006
30	20	J245 – Sliding sunroof adjustment control unit (T6l/4)
31	20	F125 – Multifunction switch (T8a/7)^*1 J217 – Automatic gearbox control unit (T68/23) J539 – Brake servo control unit (T6k/3)
32	30	N30/ N31/ N32/ N33 – Injector, cylinders, engine code CBPA only N280 – Air conditioning system compressor regulating valve^*2
32	15	J248 – Diesel direct injection system control unit (T121/2) N146 – Metering adjuster^*1
33	20	Vacant
34	10	G40 – Hall sender, engine code BEW only, from June 2003 up to December 2006 J52 – Glow plug relay (engine codes ALH and BEW only) J299 – Secondary air pump relay (T13/9)^3 J370 – Glow plug activation control unit, (6/87), engine code BEW only, from June 2003 up to December 2006 N18 – Exhaust gas recirculation valve (engine codes ALH and BEW only) N75 – Charge pressure control solenoid valve N79 – Heater element for crankcase breather^3 N108 – Commencement of injection valve (engine codes ALH and BEW only) N239 – Variable intake manifold flap change-over valve (engine codes ALH and BEW only) N205 – Inlet camshaft control valve 1 (engine codes ALH and BEW only) N249 – Turbocharger air recirculation valve (engine codes ALH and BEW only) N345 – Exhaust gas recirculation cooler change-over valve, engine code BEW only, from June 2003 up to December 2006 S130 – Secondary air pump fuse^*3 V157 – Intake manifold flap motor, engine code BEW only, from June 2003 up to December 2006
35	30	U19 – 12 V socket 3, in luggage compartment U10 – Trailer socket (T13/9)^*3
36	15	E7 – Fog light switch (T17/2)
37	20	J220 – Motronic control unit (T121/62) J248 – Diesel direct injection system control unit (T121/88), engine codes ALH and BEW J271 – Motronic current supply relay (1/30) J393 – Convenience system central control unit (T23/17), models with window regulator J623 – Engine control unit (T80/15), engine code CBPA only S283 – Brake vacuum pump fuse
38	15	E204 – Tank filler flap remote release switch E233 – Rear lid remote release button J386 – Driver door control unit (T29/19), models with window regulator J387 – Front passenger door control unit (T29a/19), models with window regulator J393 – Convenience system central control unit (T23/22)^*3
39	15	E3 – Hazard warning light switch (T8d/8)
40	20	H1 – Horn or dual tone horn J4 – Dual tone horn relay (3/30)
41	15	U1 – Cigarette lighter U5 – 12 V socket U18 – 12 V socket -2-, from 07.03 U19 – 12 V socket 3, in luggage compartment, from 07.03 Vacant^*3
42	25	R – Radio (T8/5, T8/7)
43	10	G39 – Lambda probe G70/G42 – Air mass meter/ Intake air temperature sender, engine codes BPS, BPR only G108 – Lambda probe 2 G130 – Lambda probe after catalytic converter G465 – Centre Lambda probe for bank 1 catalytic converter, engine code BPR only J299 – Secondary air pump relay (4/85)^1 N80 – Activated charcoal filter system solenoid valve 1 N112-Secondary air inlet valve^1 V144 – Fuel system diagnostic pump
43	10	F36 – Clutch pedal switch F47-Brake pedal switch J359 – Low heat output relay J360 – High heat output relay N79-Heater element for crankcase breather
44	15	J131 – Heated driver seat control unit (T6/4) J132 – Heated front passenger seat control unit (T6b/4)
1 – model year 2002 up to july 2005 2 – from model July 2005 3 – from model July 2009

J179 – Automatic glow period control unit*¹,²

Volkswagen New Beetle (1998 - 2011) - fuse and relay box diagram - engine compartment (automatic glow period control unit) — Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram – engine compartment (automatic glow period control unit)

Location: in centre of plenum chamber ⇒ -arrow-
1) engine code BEW only
2) from June 2003 up to December 2006

Additional relay carrier

Assignment of the fuses in the additional relat carrier

№	Function/component
1	Secondary air pump relay -J299- (100)^1 High heat output relay -J360- (100)^2
2	Motronic current supply relay -J271- (458)^1 Low heat output relay -J359- (53)^2
1 – petrol engines only 2 – diesel engines only

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Iveco Daily (III; 2000 – 2006) – fuse and relay box diagram

Posted on 18 July 20183 August 2025 by admin

Iveco Daily (III; 2000 – 2006) – fuse and relay box diagram

Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006

This article covers the second-generation Iveco Daily (III), produced from 2000 to 2006. It includes fuse box diagrams for the 2000, 2001, 2002, 2003, 2004, 2005 and 2006 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Passenger compartment

Fuse box diagram

Assignment of the fuses in the passenger compartment

No	Function	A
1	ID/TCA (.11): Thermal starter	40
1	UNIJET (.13-.15): Thermal starter	80
1	UNIJET F1A (.10-.12): Thermal starter, additional heater	30
2	Immobilizer/Warming/EDC	5
3	DDS device	5
4	Instrument cluster (+30)	5
5	Instrument cluster (+15)	5
6	Stalk unit (rear fog guard, flasher)	5
7	Stalk unit (low beams)	10
8	Stalk unit (high beams)	15
9	Stalk unit (side lights)	15
10	Windscreen wiper	15
11	Stalk unit (direction indicators/hazard warning lights)	15
12	Stalk unit (horns)	15
13	Reversing light	5
14	Side light, clearance, no. plate light	5
15	Side light cluster lighting	5
16	Left low beam headlamp	10
17	Right low beam headlamp	10
18	Left high beam headlamp	10
19	Right high beam headlamp/headlamp aming	10
20	Interior lighting/radio/cigar lighter	10
20	UNIJET F1A (.10-.12): Interior lighting/radio	10
21	Electric windscreen defrosting unit	30
21	UNIJET F1A (.10-.12): Cigar lighter	15
22	Heated fuel filter	15
23	EDC electronic control unit	25
24	EDC	10
25	Stop lights	5
26	13-pin current socket	15
27	13-pin current socket	15
28	13-pin current socket	10
29	38-pin diagnostic connector	5
30	Fog lamps	10
31	Climate control, additional heater, engine cooling	5
31	UNIJET F1A (.10-.12): Compressor, timer, engine fan	10
32	Climate control	5
33	Additional heater	20
34	Headlamp washer	20
35	Rear differential lock	5
36	ABS, EBD, ABD failure warning light	5
37	ABS	5
39	Heated mirrors	10
39	UNIJET F1A (.10-.12): Heated mirrors, heated rear-screen, heated windscreen	10
40	Power windows	30
40	UNIJET F1A (.10-.12): Power windows (left)	20
41	Heated rear-screen, heated windscreen	10/ 20
42	Self-levelling suspensions (Wabco)	5
43	Air bag failure warning light	5
44	Self-levelling suspensions (Wabco)	40
45	Air-bag	5
46	Solenoid valve for thermal starter	5
46	UNIJET F1A (.10-.12): Power windows (right)	20
47	Electric fuel pump	10
48	Door locking/alarm	30
49	Door locking/alarm	5
50	Rear differential lock	30
51	Total power takeoff	10
52	Front differential lock (4×4)	30
53	Self-levelling suspensions Techniek)	30
54	Electric hatch (van and 6+1)	15
55	Rototranslating door	15
Code	Relays
25035	Switching on external lights
25003	Switching on fog lamps
25006	Switching on stop lights
25704	Total power takeoff engagement control
25104	Switching off Retarder with ABS on
25209	Loads cut-off during starting
25222	Thermal starter engagement enable
25223	Thermal starter fan control
25307	Climate control compressor engagement
25336	Engine cooling
25337	Climate control compressor disengagement
25340	Compressor on signal
25620	Fuel filter clogged signal
25705	Diagnostics enable
25810	Heated fuel filter circuit control
25811	Advance variator control (KSB)
25818	Heated windscreen switching on
25837	Electric fuel pump switching on
25858	EDC switching on
25926	Suspension raising enable
25927	Suspension lowering enable
25928	Rear-screen heating switching on
61002A	Anti-retum from Trinary
61002В	Anti-retum from TGC (bus)
66010	Timer for headlamp washer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Iveco Daily (II; 1989 – 2000) – fuse and relay box diagram

Posted on 18 July 20183 August 2025 by admin

Iveco Daily (1989 – 2000) – fuse and relay box diagram

Year of production: 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000

This article covers the second-generation Iveco Daily II (2nd generation), produced from 1989 to 2000. It includes fuse box diagrams for the 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 and 2000 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Fuse box diagram

Iveco Daily (II; 1989 - 2000) - fuse and relay box diagram — Iveco Daily (II; 1989 – 2000) – fuse and relay box diagram

Assignment of the fuses in the fuse box

No.	A	Function
1	5	Lh front parking light – Lh number plate light- Rh rear parking light – Rh front and Lh rear marker
2	5	lights – Dashboard. Rh front parking light – Rh number plate light -Lh rear parking light – Lh front and Rh rear
3	7,5	marker lights. Lh low beam light
4	7,5	Rh low beam light
5	7,5	Lh high beam light
6	7,5	Rh high beam light
7	3	Electronic speedometer or tachograph
8	5	Brake – instrument – telltale failure
9	10	Fog headlights
10	3	Rear fog lamps
11	5	Interior lighting (bus)
12	7,5	Not used
13	10	Hazard lights
И	5	Tractor unit turn signal lights
15	3	Engine stop
16	7,5	Reversing lights – stop lights
17	10	Homs
18	7,5	Interior lighting – Cigar lighter
19	15	Heated fuel oil filter
20	10	Windscreen wiper – Windscreen washer pump
21	15	Electric heater – Electromagnetic fan
22	7,5	Push switch lighting – flashing light
23	25	Power window – Electromagnetic fan
24	10	Emergency control pushbutton (Bus)
25	20	Air conditioning
26	20	Air conditioning
27	25	Air conditioning
28	25	Electric heater
29	40	Thermostarter control unit
Relays
E1	Low beam lights (switch contacts)
E2	High beam lights (N.O. contact)
E3	Users cutoff during starting stage (N.O. contact)
E4	Fog lamps (switch contacts)
E5	Heated fuel oil filter
E6	Emergency control unit
E7	Day lights + fog lamps
E8	Horns (N.O. contact)
E9	Windscreen wiper intermittent
E10	Flashing light (N.O. contact)
E11	Diode for emergency control unit (with day lights)
E12	Not used
E13	Brake system failure (switch contact)
E14a	Emergency control unit (with day lights)
E14b	Emergency control unit (with day lights)
E15	Direction indicators – single charge emergency
C	Air conditioning

Engine compartment

Fuse box diagram

Assignment of the fuses in the engine compartment

Fuse	Ampere rating [A]	Description
1	30	Electro-hidraulic assembly (Power Pack)
2	20	Electronic control unit (from battery positive)
3	20	Electronic control unit (lock and key protection)

Relay	Description
a	Circuit protection diode casing
b	Optical indicator ON button
c	Reversing light
d	Buzzer (acoustic indicator)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Honda Prelude (1997 – 2001) – fuse and relay box diagram

Posted on 24 May 201816 June 2025 by admin

Honda Prelude (1997 – 2001) – fuse and relay box diagram

Year of production: 1997, 1998, 1999, 2000, 2001

This article focuses on the fifth-generation Honda Prelude (BB5–BB9), manufactured between 1996 and 2001. It includes fuse box diagrams for the 1997, 1998, 1999, 2000, and 2001 models, along with information on the location of the fuse panels inside the vehicle and details about each fuse’s function (fuse layout).

Passenger Compartment Fuse Box

Fuse Box Location

The interior fuse box is underneath the dashboard on the driver’s side. To open it, turn the knob as shown.

Fuse Box Diagram

Honda Prelude (1997 - 2001) - fuses and relay box diagram - passenger compartment — Honda Prelude (1997 – 2001) – fuses and relay box diagram – passenger compartment

Assignment of the fuses in the instrument panel

Number	Fuse name	Ampere rating [A]	Circuit protected
1	(ATTS UNIT)	10	Active Torque Transfer System Unit (Type SH)
2	STARTER SIGNAL	7,5	PGM-FI main relay, ECM, Starting system
3	—	—	—
4	ACG-S	10	PGM-FI main relay, Immobilizer control unit
5	(RR SPEAKER)	10	Stereo amplifier
6	(HEATED SEAT)	15	Seat heaters (Canada)
7	(SUN ROOF)	30	Moonroof
8	(DAY LIGHT)	7,5	Daytime running lights control unit (Canada)
9	R/C MIRROR (ABS, ATTS)	7,5	ABS system, Mirror defoggers (Canada), Power mirrors, Seat heaters (Canada), Blower motor relay, Option connector C982, ATTS system
10	TAIL LIGHT	15	Console lights, Dash lights, Parking lights, Rear side marker lights, Taillights, Security system (Canada)
11	REAR DEFROSTER RELAY	7,5	Rear window defogger relay
12	(DAY LIGHT UNIT)	7,5	Daytime running lights control unit (Canada)
13	METER (CRUISE CONTROL)	15	Turn signal lights, Hazard warning lights, Back-up lights, Cruise control, Clock, Gauge assembly, Driver’s multiplex control unit
14	ECU EAT ECU	15	Charging system, Vehicle speed sensor (VSS), TCM, PGM-FI, Immobilizer system (early production ’97 Model), Interlock system, Gauge assembly, Security system (Canada)
15	P/W DRIVER	20	Master power window switch/motor
16	P/W ASSISTANT	20	Passenger’s power window switch/motor
17	WIPER	30	Windshield wiper motor, Windshield intermittent wiper relay, Windshield washer switch
18	ACC	7,5	Stereo sound system, Accessory power socket relay, Interlock system
19	—	—	—
20	—	—	—
21	Fuel Pump	15	Fuel Pump
22	SRS	10	SRS
23		15	SRS unit
24		10	SRS unit
25		10	Spare Fuse
26		20	Spare Fuse
27		30	Spare Fuse
28		7,5	Active Torque Transfer System (Type SH)
29	—	—	—

R1	Turn Signal/Hazard Relay
R2	Moonroof Close Relay
R3	Blower Motor Relay
R4	Power Window Relay
R5	Moonroof Open Relay
R6	Rear Window Defogger Relay

Fusebox in engine compartment

Fuse Box Location

The under-hood fuse box is located in the back of the engine compartment on the passenger’s side.

Fuse Box Diagram

Honda Prelude (1997 - 2001) - fuses and relay box diagram - engine compartment — Honda Prelude (1997 – 2001) – fuses and relay box diagram – engine compartment

Assignment of the fuses in the engine compartment

№	Amps	Circuits Protected
1	40A	Main Fuse (Power Window)
2	50A	Main Fuse (Fuse Box)
3	40A	Main Fuse (Heater Motor)
4	40A	Main Fuse (Rear Defroster)
5	50A	Main Fuse (Ignition Switch)
6	–	Not Used
7	100A	Main Fuse (Battery)
8	30A	Main Fuse (ABS Motor)
9	20A	Cooling Fan
10	15A	Interior Lights
11	20A	Condenser Fan
12	10A	Door Lock
13	7.5A	Clock, Radio
14	20A	Small Light
15	15A	Stop, Horn
16	20A	ABS +B
17	10A	Hazard
18	–	Not Used
19	7.5A	ABS Unit
20	20A	Left Headlight
21	20A	Right Headlight

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Lumina (1998 – 2001) – fuse and relay box diagram

Posted on 1 January 20187 July 2025 by admin

Chevrolet Lumina (1998 – 2001) – fuse and relay box diagram

Year of production: 1998, 1999, 2000, 2001

This article focuses on the second-generation Chevrolet Lumina, manufactured from 1994 to 2001. It provides fuse box diagrams for the 1998, 1999, 2000 and 2001 models, along with details on the location of the fuse panels within the vehicle and explanations of each fuse and relay assignment (fuse layout).

Instrument Panel Fuse Block

Fuse Box Location

The fuse box is located behind the cover on the passenger side of the instrument panel.

Fuse Box Diagram

Chevrolet Lumina (1998 - 2001) - fuses and relay box diagram - passenger compartment — Chevrolet Lumina (1998 – 2001) – fuses and relay box diagram – passenger compartment

Assignment of the fuses in the instrument panel (1998 – 2001)

№	Description
1	Cigar Lighter – Instrument Panel and Console Cigarette Lighter
2	Not Used
3	Not Used
4	HVAC – HVAC Control Assembly Solenoid Box, Mix Motor, DRL Module, HVAC Control Head, Defogger Relay, (S.E.O.) Digital Speedometer
5	Hazard Flasher
6	RH Spot Lamp (S.E.O.)
7	Starter Relay
8	Not Used
9	Not Used
10	I/P Electronics Battery – Chime Module, Electronic Brake Control Module (EBCM), Theft-Deterrent Module, Radio, DLC
11	Power Accessory #2 – Sunroof Control Unit, (S.E.O.) Accessory Feed
12	Anti-Theft/PCM – Theft-Deterrent Module, Powertrain Control Module, (PCM) IGN System Relay
13	ABS – Electronic Brake Control Module (EBCM), ABS Relay
14	HVAC Blower Motor – Blower Motor Relay
15	LH Spot Lamp (S.E.O.)
16	Steering Wheel Control #1 – Steering Wheel Radio Control Lighting
17	Not Used
18	Not Used
19	Power Accessory #1 – Door Lock Switches, Trunk Courtesy Lamp, O/S Mirror Switch, (S.E.O.) Emergency Vehicle-Rear Compartment Lid Lamp or Window Panel Lamps
20	Steering Wheel Control #2 – Steering Wheel Radio Controls
21	Air Bag – Air Bag System
22	Cruise Control – Cruise Control Cut-Out Switch, Cruise Control Module, Turn Signal Cruise Control Switches
23	Stoplamps – Stoplamp Switch (Brake)
24	Not Used
25	English/Metric (S.E.O.)
26	Not Used
27	Not Used
28	CTSY Lamps – Vanity Mirrors, I/P Compartment Lamp, I/S Lighted Rearview Mirror, Dome Lamp
29	Wiper – Wiper Switch
30	Turn Signal – Turn Signal Flasher
31	Not Used
32	Power Locks – Door Lock Relay, Remote Keyless Entry Receiver
33	DRL MDL – Daytime Running Lamp Module, (S.E.O.) Accessory Switch
34	Not Used
35	Not Used
36	Not Used
37	Rear Defog – Rear Window Defogger Switch Relay
38	Radio, Power Drop
39	I/P Electronics Ignition Feed – Headlamp Switch, Instrument Cluster, Chime Module, Keyless Entry Receiver, Stoplamp switch (TCC and BTSI) (S.E.O.) Accessory Switch
40	Not Used
41	Power Drop
42	Evap. Sol. – Evaporation Emissions (EVAP) Canister Vent Solenoid Valve
43	Not Used
44	Not Used
45	Not Used

Circuit Breakers
A	Not Used
B	Not Used
C	Power Windows
D	Power Seats
E	Not Used

Engine Compartmet Fuse Box (Driver Side)

Fuse box diagram

Chevrolet Lumina (1998 - 2001) - fuses and relay box diagram - engine compartment (driver side) — Chevrolet Lumina (1998 – 2001) – fuses and relay box diagram – engine compartment (driver side)

Assignment of the fuses in the engine compartment fuse box №1 – driver side (1998-2001)

№	Name	Description
1		Not Used
2		Not Used
3		Not Used
4	FAN #3	FAN #3 Relay
5	PARK LPS	Headlamp Switch
6	HORN	Horn Relay
7	ABS	Anti-Lock Brake System
8		Not Used
9		Not Used
10		Not Used
11		Circuit Breaker C, Starter Relay, Str Whl Control # 2, Power Accessory #2, and Theft-Deterrent Relay
12		HD LPS – Circuit Breaker to Headlamp Switch
13		ABS – ABS Relay

Relay
14		ABS – Anti-Lock Brake System
15		FAN #3 – Secondary Cooling Fan (Passenger’s Side)
16		HORN

Engine Compartmet Fuse Box (Passenger Side)

Fuse box diagram

Chevrolet Lumina (1998 - 2001) - fuses and relay box diagram - engine compartment (passenger side) — Chevrolet Lumina (1998 – 2001) – fuses and relay box diagram – engine compartment (passenger side)

Assignment of the fuses in the engine compartment fuse box №1 – passenger side (1998-2001)

№	Name	Description
1		Not Used
2	R/CMPT REL	Remote Trunk Release, Back-Up Lamps, Remote Control Door Lock Receiver
3	PCM BAT	Powertrain Control Module (PCM), Fuel Pump Relay, Fan Cont #1 and #2 Relay
4		Not Used
5	A/C CONT	A/C Cmpt Relay
6	TRANS	Automatic Transaxle
7	F/INJN	Fuel Injectors
8	PCM IGN	Mass Air Flow (MAF) Sensor Heated Oxygen Sensor #1 and #2 Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
9	ELEK IGN	Electronic Ignition (EI) Control Module
10		I/P Fuse Block
11		Not Used
12		Passenger’s Side Underhood Electrical Center, Ign Syst Relay, R/Cmpt Rel fuse, PCM Bat fuse
13		Fan Cont #1 Relay

Relay
14		Fuel Pump
15		A/C Cmpr
16		Fan Cont #2 – Secondary Cooling Fan (Passenger’s Side)
17		Fan Cont #1 – Primary Cooling Fan (Driver’s Side)
18		Ign Syst

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Century (VI; 2000 – 2001) – fuse and relay box diagram

Posted on 22 January 201715 August 2025 by admin

Buick Century (VI; 2000 – 2001) – fuse box diagram

Year of production: 2000, 2001

This article covers the Buick Century. It includes fuse box diagrams for the 6th generation 2000 and 2001 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Passenger compartment

Fuse box location

The fuse box is located on right side of the instrument panel, behind the cover.

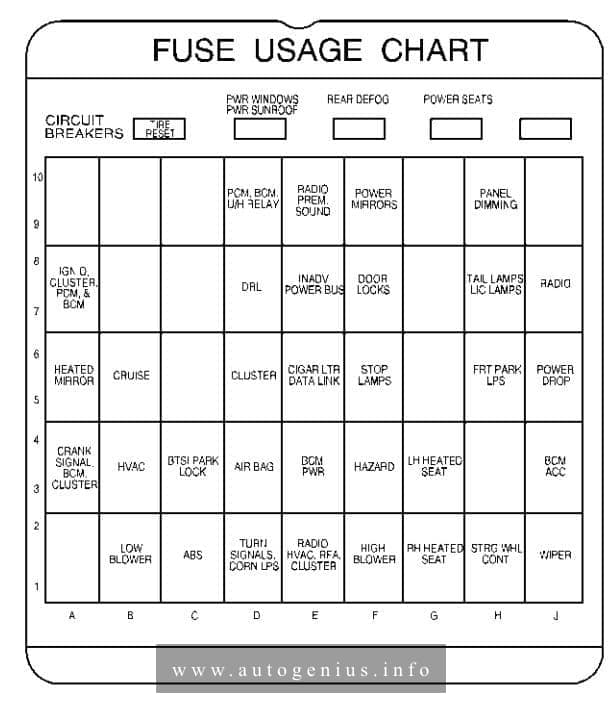

Buick Centaury (VI; 2000 - 2001) - fuse and relay box diagram - passenger compartment — Buick Centaury (VI; 2000 – 2001) – fuse and relay box diagram – passenger compartment

Assignment of the fuses in the passenger compartment

Circuit Breakers	Usage
TIRE RESET	Tire Inflation Monitor Reset Button
PWR WINDOWS, PWR SUNROOF	Power Windows, Power Sunroof
REAR DEFOG	Rear Window Defogger
POWER SEATS	Power Seat
Blank	Not Used

Fuses	Usage
Blank	Not Used
Blank	Not Used
Blank	Not Used
PCM, BCM, U/H RELAY	Ignition Signal: Hot in Run and Start, Powertrain Control Module, Body Control Module, Underhood Relay
RADIO PREM. SOUND	Remote Radio Premium Sound
POWER MIRRORS	Power Mirrors
Blank	Not Used
PANEL DIMMING	Panel Dimming
Blank	Not Used
IGN 0, CLUSTER, PCM, BCM	Ignition Signal: Hot in Run, Unlock and Start; Cluster, Powertrain Control Module, Body Control Module
Blank	Not Used
Blank	Not Used
DRL	Daytime Running Lamps Module
INADV POWER BUS	Interior Lamps, Retained Accessory Power
DOOR LOCKS	Door Locks
Blank	Not Used
TAIL LAMPS, LIC LAMPS	Taillamps, License Lamps
RADIO	Radio
HEATED MIRROR	Heated Mirrors
CRUISE	Cruise Control
Blank	Not Used
CLUSTER	Instrument Panel Cluster
CIGAR LTR, DATA LINK	Cigarette Lighter, Auxiliary Power Connection (Power Drop), Data Link
STOP LAMPS	Stoplamps
Blank	Not Used
FRT PARK LPS	Parking Lamps
POWER DROP	Auxiliary Power Connection (Power Drop): Hot in ACC and Run
CRANK SIGNAL, BCM, CLUSTER	Crank Signal, Body Control Module, Cluster, Powertrain Control Module
HVAC	Ignition Signal, HVAC Control Head
BTSI PARK LOCK	Shifter Lock Solenoid
AIR BAG	Air Bag
BCM PWR	Body Control Module
HAZARD	Hazard Warning Flashers
LH HEATED SEAT	Driver’s Heated Seat
Blank	Not Used
BCM ACCY	Ignition Signal: Hot in ACCESSORY and RUN, Body Control Module
Blank	Not Used
LOW BLOWER	Low Blower
ABS	Anti-Lock Brakes
TURN SIGNALS, CORN LPS	Turn Signals, Cornering Lamps
RADIO, HVAC, RFA, CLUSTER	Radio, HVAC Head, Remote Keyless Entry, Cluster
HIGH BLOWER	High Blower
RH HEATED SEAT	Passenger’s Heated Seat
STRG WHL CONT	Audio Steering Wheel Controls
WIPER	Wipers

Engine compartment

Fuse box location

Some fuses and relays are located in the underhood fuse block on the passenger’s side of the vehicle in the engine compartment.

Fuse box diagram

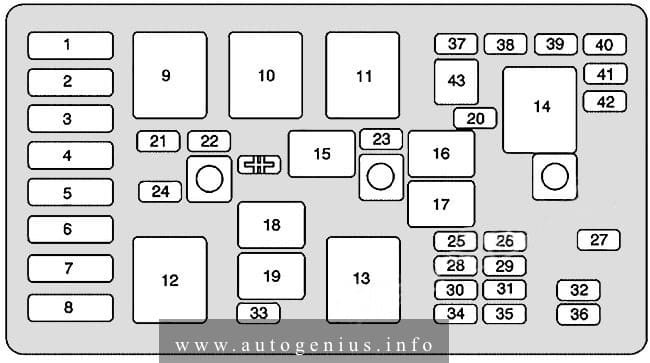

Buick Centaury (VI; 2000 - 2001) - fuse and relay box diagram - engine compartment — Buick Centaury (VI; 2000 – 2001) – fuse and relay box diagram – engine compartment

Assignment of the fuses in the engine compartment

Maxi Fuses	Usage
1	ABS
2	Starter Solenoid
3	Power Seats, Rear Defog
4	High Blower, Hazard Flasher, Stoplamps, Power Mirror, Door Locks
5	Ignition Switch, BTSI, Stoplamps, ABS, Turn Signals, Cluster, Air Bag, DRL Module
6	Cooling Fan
7	Interior Lamps, Retained Accessory Power, Keyless Entry, Data Link, HVAC Head, Cluster, Radio, AUX Power (Power Drop), Cigarette Lighter
8	Ignition Switch, Wipers, Radio, Steering Wheel Controls, Body Control Module, AUX Power (Power Drop), Power Windows, Sunroof, HVAC Controls, DRL, Rear Defog Relay

Mini Relays	Usage
9	Cooling Fan 2
10	Cooling Fan 3
11	Starter Solenoid
12	Cooling Fan 1
13	Ignition Main
14	Air Pump (Optional)

Micro Relays	Usage
15	A/C Clutch
16	Horn
17	Not Used
18	Not Used
19	Fuel Pump

Mini Fuses	Usage
20	Air Pump (Optional)
21	Generator
22	ECM
23	A/C Compressor Clutch
24	Cooling Fan
25	Electronic Ignition
26	Transaxle

Mini Relay	Usage
27	Horn
28	Fuel Injector
29	Oxygen Sensor
30	Engine Emissions
31	Not Used
32	Headlamp (Right)
33	Rear Compartment Release
34	Parking Lamps
35	Fuel Pump
36	Headlamp (Left)
37	Spare
38	Spare
39	Spare
40	Spare
41	Spare
42	Spare
43	Fuse Puller
SYMBOL	Air Conditioner Compressor Clutch Diode

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GMC Sonoma (1999 – 2002) – fuse and relay box diagram

Posted on 30 December 20163 May 2025 by admin

GMC Sonoma (1999 – 2002) – fuse and relay box diagram

Year of production: 1999, 2000, 2001, 2002

This article covers the second-generation GMC Sonoma, produced from 1994 to 2004. It includes fuse box diagrams for the 1999 to 2002 models, provides details on the locations of the fuse panels within the vehicle, and explains the layout and function of each fuse and relay.

Passenger Compartment

Fuse box location

The instrument panel fuse block is at the driver’s end of the instrument panel.

Fuse box diagram

GMC Sonoma (1999 - 2002) - fuse and relay box diagram - passenger compartment fuse box — GMC Sonoma (1999 – 2002) – fuse and relay box diagram – passenger compartment fuse box

Assignment of the fuses in the passenger compartment

Fuse/Circuit Breaker	Usage
A	Not Used
B	Not Used
1	Not Used
2	Cigarette Lighter, Data Link Connector
3	Cruise Control, Body Controls TBC, Cruise Module, Cruise Switch
4	Gages, Body Controls TBC, Instrument Panel Cluster, B+ Power
5	Parking Lamps, Power Window Switch, TBC, Ashtray Lamp
6	Not Used
7	Headlamp Switch, Body Controls TBC, Headlamp Relay
8	Courtesy Lamps, Inadvertent Power Relay
9	HVAC Control Head
10	Turn Signal
11	Instrument Panel Cluster, Engine Controls
12	Interior Illumination
13	Auxiliary Power
14	Power Locks
15	4WD Switch, Engine Control (VCM, PCM, Transmission)
16	Supplemental Inflatable Restraint
17	Front Wiper
18	Not Used
19	Radio Battery
20	Not Used
21	HVAC I, HVAC Control Head, HVAC Devices
22	Anti-Lock Brakes
23	Rear Wiper
24	Radio, Ignition

Engine Compartment

Fuse box location

The fuse block is under the hood on the driver’s side of the engine compartment.

Fuse box diagram

GMC Sonoma (1999 - 2002) - fuse and relay box diagram - engine compartment fuse box — GMC Sonoma (1999 – 2002) – fuse and relay box diagram – engine compartment fuse box

Assignment of the fuses in the engine compartment

Name	Usage
TRL TRN	Not Used
TRR TRN	Not Used
TRL B/U	Not Used
VEH B/U	Vehicle Back-Up Lamps
RT TURN	Right Turn Signal Front
LT TURN	Left Turn Signal Front
HDLP W/W	Not Used
LT TRN	Left Turn Signal Rear
RT TRN	Right Turn Signal Rear
RR PRK	Right Rear Parking Lamps
TRL PRK	Not Used
LT HDLP	Left Headlamp
RT HDLP	Right Headlamp
FR PRK	Front Parking Lamps
INT BAT	I/P Fuse Block Feed
ENG I	Engine Sensors/Solenoids, MAF, CAM, PURGE, VENT
ECM B	Engine Control Module, Fuel Pump Module, Oil Pressure
ABS	Anti-Lock Brake System
ECM I	Engine Control Module Injectors
BTSI	Brake-Transmission Shift Interlock
B/U LP	Back-Up Lamps
A/C	Air Conditioning
W/W PMP	Not Used
HORN	Horn
IGN B	Column Feed, IGN 2, 3, 4
RAP	Retained Accessory Power
LD LEV	Not Used
OXYSEN	Oxygen Sensor
IGN E	Engine
MIR/LKS	Mirrors, Door Locks
FOG LP	Fog Lamps
IGN A	Starting and Charging IGN 1
STUD #2	Accessory Feeds, Electric Brake
PARKLP	Parking Lamps
LR PRK	Left Rear Parking Lamps
IGN C	Starter Solenoid, Fuel Pump, PRNDL
HTDSEAT	Not Used
HVAC	HVAC System
TRCHMSL	Not Used
RRDFOG	Not Used
TBC	Truck Body Computer
CRANK	Clutch Switch, NSBU Switch
HAZLP	Hazard Lamps
VECHMSL	Vehicle Center High-Mounted Stoplamp
HTDMIR	Heated Outside Mirrors
ATC	Transfer Case (Four-Wheel Drive)
STOPLP	Stoplamps
RR W/W	Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GMC Savana (1997 – 2000) – fuse and relay box diagram

Posted on 26 December 20168 July 2025 by admin

GMC Savana (1997 – 2000) – fuse and relay box diagram

Year of production: 1997, 1998, 1999, 2000

This article provides fuse box diagrams for the GMC Savana models from 1997 to 2000. It includes information on the location of the fuse panels within the vehicle and details the function and layout of each fuse and relay.

Passenger Compartment

Fuse box location

The fuse block access door is on the driver’s side of the instrument panel above the hood release lever.

Fuse box diagram

GMC Savana (1997 - 2000) - fuse and relay box diagram - passenger compartment — GMC Savana (1997 – 2000) – fuse and relay box diagram – passenger compartment

Assignment of the fuses in the passenger compartment

Position	Name	Circuits protected
1	STOP	Stop/CHMSL, Stoplamps
2	HTD MIR	Electric Heated Mirrors
3	CTSY	Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors
4	GAUGES	IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry Illumination, Low Coolant Module, CHIME Module, DRAB Module
5	HAZARD	Hazard Lamps/CHIME Module
6	CRUISE	Cruise Control
7	PWR AUX	Auxiliary Power Outlet, DLC
8	CRANK	—
9	PARK LPS	License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove Box Ashtray
10	AIR BAGS	Air Bags
11	WIPER	Wiper Motor, Washer Pump
12	HTR-A/C	A/C, A/C Blower, High Blower Relay, HTD Mirror
13	CIG LTR	Cigarette Lighter
14	ILLUM	IP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio Illumination, Door Switch Illumination
15	DRL	DRL Relay
16	TURN B/U	Front Turn, RR Turn, Back-up Lamps, BTSI Solenoid
17	RADIO-1	Radio (Ign, Accy), Upfitter Provision Relay
18	BRAKE	4WAL PCM, ABS, Cruise Control
19	RADIO-B	Radio (Battery), Power Antenna
20	TRANS	PRNDL, Automatic Transmission
21	SECURITY	Passlock
22	RR DEFOG	Rear Window Defog
23	Not Used	—
24	RR HVAC	RR HVAC Controls, HIGH, MED, LOW Relays
A	PWR ACCY	Power Door Lock, Six-Way Power Seat, Keyless Entry Illumination Module
B	PWR WDO	Power Windows
Fuse amperage levels are imprinted on the fuse panel under the dash.

Engine Compartment

Fuse box location

The fuse block is on the driver’s side of the engine compartment at the rear.

Fuse box diagram

GMC Savana (1997 - 2000) - fuse and relay box diagram - engine compartment — GMC Savana (1997 – 2000) – fuse and relay box diagram – engine compartment

Assignment of the fuses in the engine compartment

Name	Circuit protected
BLOWER	Front Blower Motor
ABS	Electronic Brake Control Module
IGN B	Ignition Switch
IGN A	Starter Relay, Ignition Switch
BATT	Instrument Panel Fuse Block
LIGHTING	Instrument Panel Fuse Block, Headlamp Switch
RR BLOWER	Rear Auxiliary Blower Motor Relays
ENG-I	Heated O2 Sensors, Mass Air Flow Sensor, EGR Valve Solenoid, Evap Canister Purge Valve, Crankshaft Position Sensor, Secondary Air Injection Relay (Diesel), Water in Fuel Sensor (Diesel), Fuel Heater (Diesel), Glowplug Relay (Diesel), Wastegate Solenoid (Diesel)
A/C	Air Conditioning Clutch Relay
SPARE	Spare Fuses
AUX A	Upfitter Provisions
AUX B	Upfitter Provisions
RH-HDLP	Right-hand Headlamp (Export only)
RH-HIBM	Right-hand High-beam Headlamp (Export only)
ECM-I	Ignition Coil, Camshaft Position Sensor, VCM, Fuel Injectors, Coil Driver
HORN	Horn Relay, Underhood Lamp(s)
LH-HDLP	Left-hand Headlamp (Export only)
LH-HIBM	Left-hand High-beam Headlamp (Export only)
FUEL SOL	PCM, Fuel Solenoid Driver, Engine Shutoff Solenoid
IGN-E	Air Conditioning Clutch Relay
ECM-B	Fuel Pump Relay, VCM, PCM, Fuel Pump and Engine Oil Pressure Switch

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GMC Safari (2000 – 2003) – fuse and relay box diagram

Posted on 25 December 20163 May 2025 by admin

GMC Safari (2000 – 2003) – fuse box and relay diagram

Year of production: 2000, 2001, 2002, 2003

This article focuses on the second-generation GMC Safari, produced from 1996 to 2005. It includes fuse box diagrams for the 2000 to 2003 models, along with information on the locations of the fuse panels inside the vehicle and details about the function and layout of each fuse and relay.

Passenger Compartment Fuse Box

Fuse box location

The fuse block is on the lower portion of the instrument panel on the driver’s side.

Fuse box diagram

GMC Safari (2000 - 2003) - fuse and relay box diagram - passenger compartment fuse box — GMC Safari (2000 – 2003) – fuse and relay box diagram – passenger compartment fuse box

Assignment of the fuses in the passenger compartment

Fuse/Circuit Breaker	Usage
1	Stop/Turn/Hazard Lamps, CHMSL, ABS
2	Radio ACCY, RR Seat Audio Controls
3	Courtesy Lamps, Glove Box Lamp, Dome Reading Lamps, Vanity Mirror Lamps, Courtesy Lamps
4	DRL Relay, Instrument Panel Cluste
5	Rear Defogger
6	Cruise Module, TBC Module, Instrument Panel Cluster, Cruise Control Switch, Electrochromic Mirror
7	Power Outlets, DLC, Subwoofer Amplifier
8	Crank Circuit Fuse, Park/Neutral Switch, Starter Enable Relay
9	License Plate Lamp, Taillamps, Parking Lamps, Ashtray Lamp, Panel Lights, Trailer Taillamps, Front and Rear Sidemarker Lamps, Door Switch Illumination, Headlamp Switch Illumination, Rear Seat Audio Illumination, TBC Module
10	Air Bag System
11	Not Used
12	L, M1, M2 Blower Motor, Rear A/C Relay Coil, Front Cont. Temp. Door Motor, HI Blower Relay, Defogger Timer Coil
13	Cigarette Lighter, Door Lock Switches, Dutch Door Release Module
14	Cluster Illum, HVAC Controls, Chime Module, Radio Illumination, Rear Heat Switch Illumination, Rear Wiper/Washer Switch Illumination, Rear Liftgate Switch Illumination, Remote Cassette Illumination, O/H Console, TBC Illumination
15	TBC Module, Headlamp Relay
16	Front Turn Signals, Rear Turn Signals, Trailer Turn Signals, Back-Up Lamps, BTSI Solenoid
17	Front Wipers, Front Washer Pump
18	VCM-Ign 3, VCM-Brake, Cruise Stepper Motor Signal, ATC Module
19	Instrument Panel Radio: ATC (Main Feed), 2000 Series (Standby)
20	PRNDL/ Odometer, TCC Enable and PWM Solenoid, Shift A and Shift B Solenoids, 3-2 Downshift Solenoid, Instrument Panel Cluster, VCM Module
21	Pwr Adj Mirrors
22	Not Used
23	Rear Wiper, Rear Washer Pump
24	Not Used
A	(Circuit Breaker) Power Door Lock Relay, 6-Way Power Seats
B	(Circuit Breaker) Power Windows

Engine Compartment Fuse Box

Fuse box location

The underhood fuse block is located toward the rear of the engine compartment on the driver’s side of the vehicle.

Fuse box diagram

GMC Safari (2000 - 2003) - fuse and relay box diagram - engine compartment fuse box — GMC Safari (2000 – 2003) – fuse and relay box diagram – engine compartment fuse box

Assignment of the fuses in the engine compartment

Feed	Usage
AUX B	Upfitter Battery Feed
AUX A	Upfitter Accessory Feed

Relay

A/C Relay (Rear Heat and A/C)

Upfitter-ACCY Relay

Starter Enable Relay

A/C Enable Relay

Headlamps Relay

Fuel Pump Relay

Fuse/Circuit Breaker	Usage
UPFITTER-BATT	Upfitter Battery Power Stud, Trailer Wiring Harness
UPFITTER-ACCY	Upfitter Accessory Relay
Spare	Not used
Fuse Puller*	—
Spare	Not used
Spare	Not used
ECM-B	Fuel Pump Relay and Motor, VCM, Oil Pressure Switch/Sender
HORN	Horn Relay and Horn
A/C COMP	A/C Enable Relay and Compressor
ATC	Active Transfer Case-L Van
FRT HVAC	Front Heater and A/C
ENG-I	Oxygen Sensors, Camshaft Position Sensor, Mass Air Flow Sensor, Evaporative Emission Canister Vent Solenoid
IGN-E	A/C Enable Relay Coil
ECM-I	Fuel Injectors 1-6, Crankshaft Position Sensor, VCM, Coil Driver Module (EST), Ignition Coil
RH HDLMP	Right Headlamp
LH Headlamp	Left Headlamp
DIODE-A/C Coil	A/C
LIGHTING	Courtesy Fuse, Pwr. Adj. Mirrors Fuse, TBC-Battery Fuse
BATT	Power ACCY CB, Stop/Hazard Fuse, Auxiliary Power Fuse, Cigarette Lighter Fuse, Radio Battery Fuse
IGN A	Starter Relay, Ignition Switch
IGN B	Ignition Switch
ABS	Electronic Brake Control Module
RAP	Radio Accy, Power Windows
HTD MIR/RR DEFOG	Rear Window Defogger, HVAC Control Head
A fuse puller is included in the underhood electrical center

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

BMW Z8 (E52; 1999 – 2003) – vehicle specification

Posted on 10 January 20165 August 2025 by admin

BMW Z8 (E52; 1999 – 2003) – vehicle specification

Year of production: 1999, 2000, 2001, 2002, 2003

This article covers the second-generation BMW Z8 (E52), produced from 1999 to 2003. It includes vehicle specification for the 1999, 2000, 2001, 2002 and 2003 models.

Engine specification

BMW Z8
Displacemen	cu in (ccm)	301.5 (4,941)
Number of cylinders		8
Maximum output at engine speed	hp	394
Maximum output at engine speed	rpm	6,600
Maximum torque at engine speed	ft lbs (Nm)	368 (500)
Maximum torque at engine speed	rpm	3,800
Compression ratio	E	11
Stroke	in (mm)	3.50 (89.0)
Bore	in (mm)	3.70 (94.0)
Fuel injection system		Digital electronic engine-management system

Dimensions

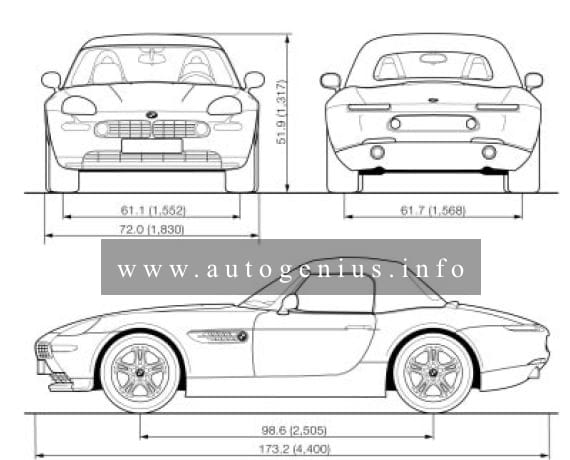

BMW Z8 (E52; 1999 - 2003) - vehicle specification — BMW Z8 (E52; 1999 – 2003) – vehicle specification

Weights

BMW Z8
Curb weight (with one person, ready for operation, full tank of fuel, without hardtop)	Ibs. (kg)	3,725 (1,690)
Approved gross vehicle weight	Ibs. (kg)	4,255 (1,930)
Approved front axle weights	Ibs. (kg)	2,028 (920)
Approved rear axle weights	Ibs. (kg)	2,359 (1,070)
Approved roof load capacity	Ibs. (kg)	—
Luggage compartment capacity	cu ft (litres)	7.2 (203)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
